Section 588 (Connector End Views)
>>
Connector Pin-Outs
>>

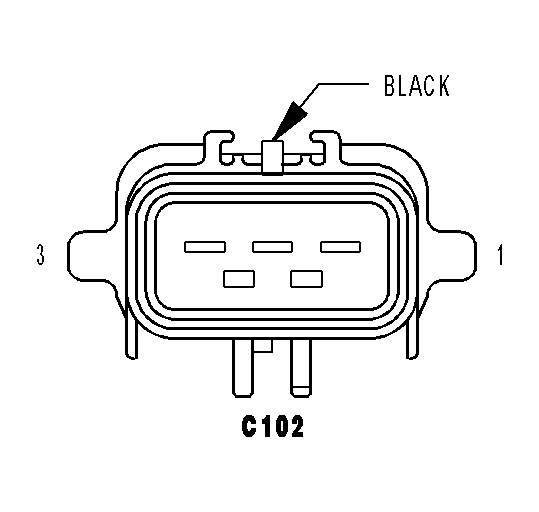

Battery Side Inline Connector End View (C102)
Battery Side Inline Connector End View (C102)
WARNING:
This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C102 - BLACK (BATTERY SIDE)
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
1
Z385 18BK (GAS)
2
K125 16BR/DG (GAS)
3
T750 12YL/GY
