Automatic Shut Down Relay Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

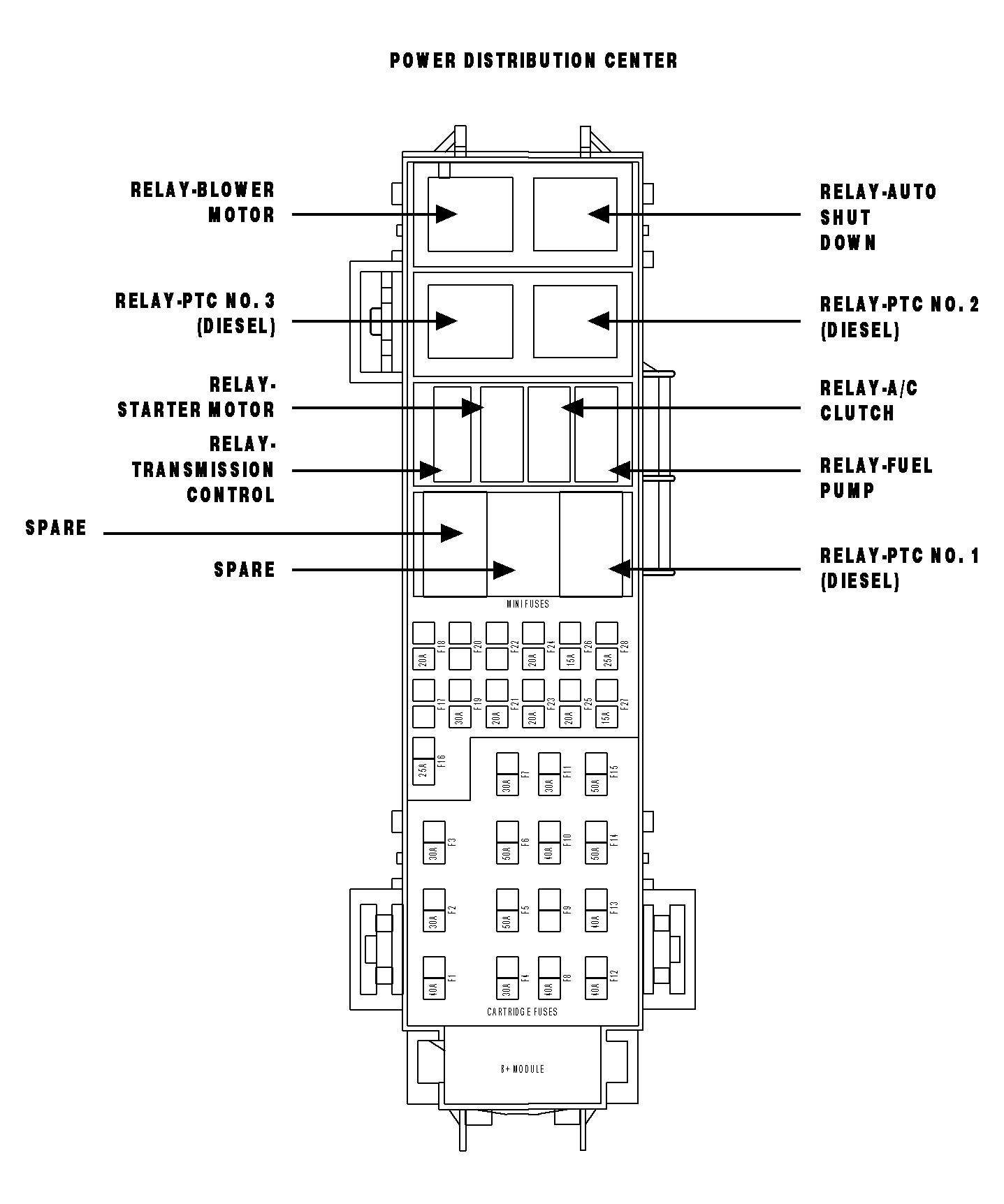

RELAY-AUTO SHUT DOWN

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	A924 10RD	FUSED B(+)
85	K342 20BR/WT	ASD RELAY CONTROL
86	A924 10RD	FUSED B(+)
87	A142 10RD/OR	ASD RELAY OUTPUT
87A	-	-
