Adjustable Pedals Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

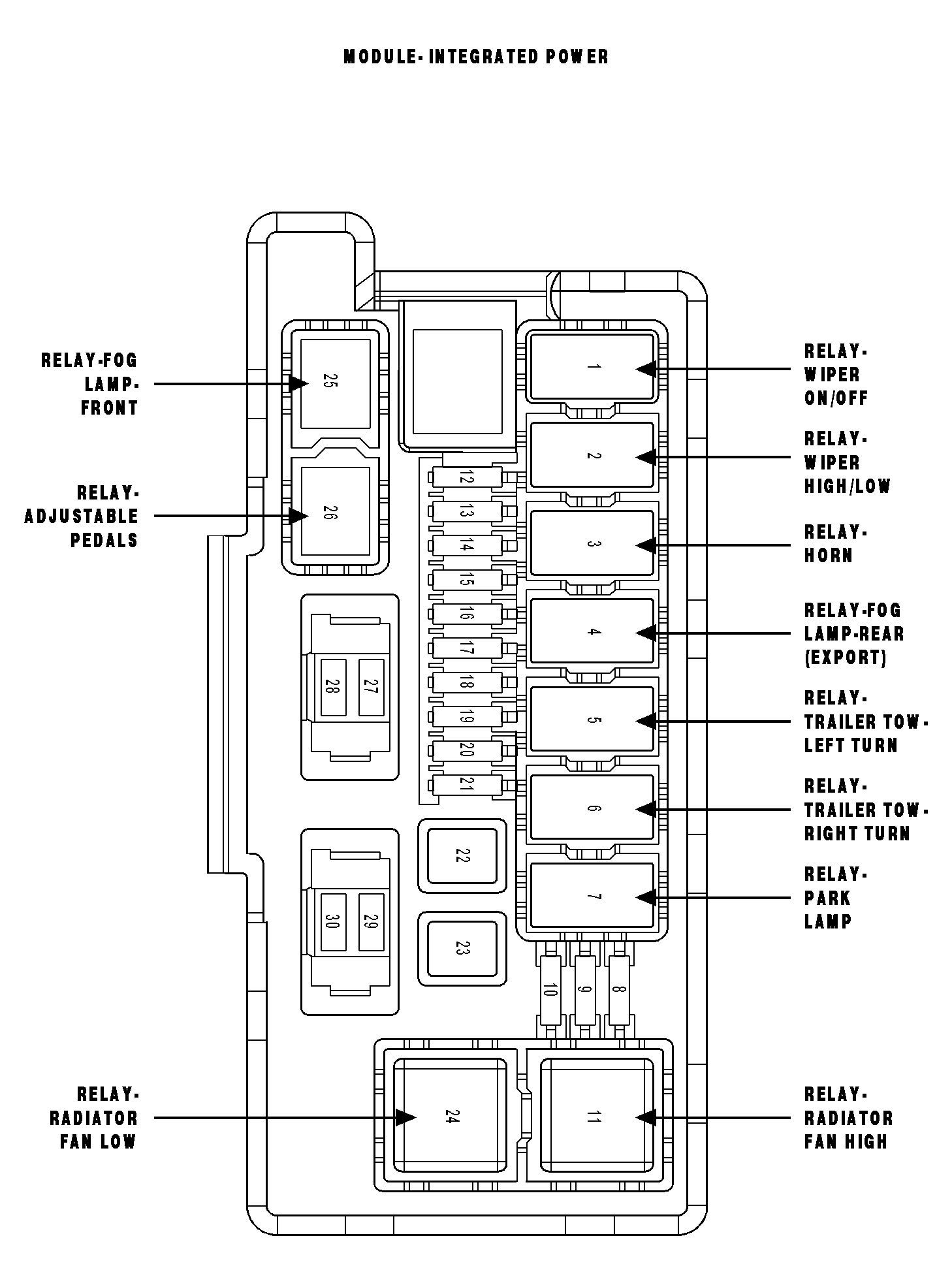

RELAY-ADJUSTABLE PEDALS
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A903 18RD |
FUSED B(+) |
| 85 |
P201 20LG/DB |
ADJUSTABLE PEDALS RELAY CONTROL |
| 86 |
A903 18RD |
FUSED B(+) |
| 87 |
- |
- |
| 87A |
A72 18RD/OR |
ADJUSTABLE PEDALS RELAY OUTPUT |
