Adjustable Pedals Motor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

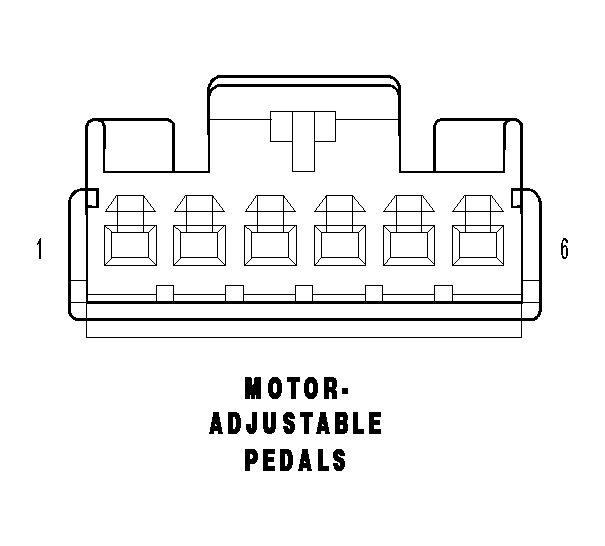

MOTOR-ADJUSTABLE PEDALS - 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P205 16LG/DB | ADJUSTABLE PEDALS MOTOR FORWARD |
| 2 | P206 16LG/TN | ADJUSTABLE PEDALS MOTOR REARWARD |
| 3 | G12 20VT/BR (MEMORY ADJUSTABLE PEDALS) | ADJUSTABLE PEDALS SENSOR SIGNAL |
| 4 | G11 20VT/TN (MEMORY ADJUSTABLE PEDALS) | ADJUSTABLE PEDALS SENSOR SUPPLY |
| 5 | G912 20VT/WT (MEMORY ADJUSTABLE PEDALS) | ADJUSTABLE PEDALS SENSOR RETURN |
| 6 | - | - |
