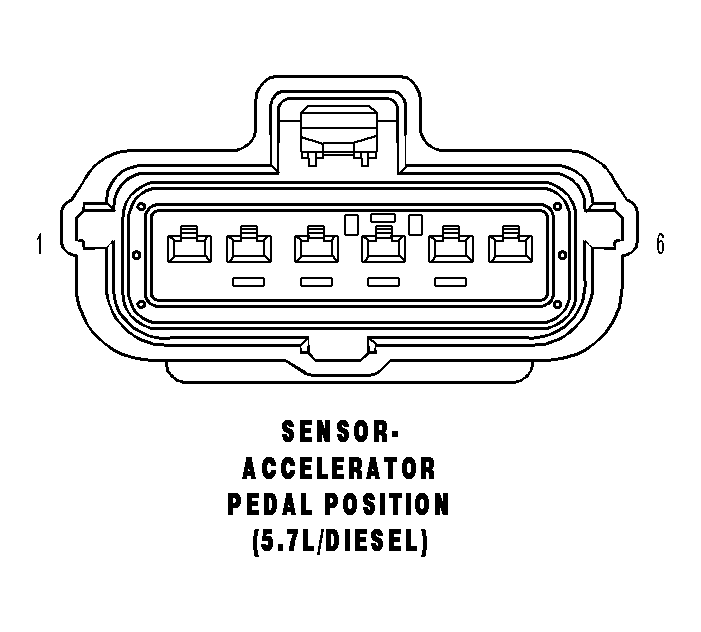

Accelerator Pedal Position Sensor (5.7L/Diesel) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SENSOR-ACCELERATOR PEDAL POSITION (5.7L/DIESEL) - 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | F856 20YL/PK | 5 VOLT SUPPLY |
| 2 | K29 20WT/BR | APPS NO. 2 SIGNAL |
| 3 | K400 20BR/VT | APPS NO. 2 RETURN |
| 4 | K167 20BR/TN (5.7L) | APPS NO. 1 RETURN |
| 4 | K167 16BR/TN (DIESEL) | APPS NO. 1 RETURN |
| 5 | K23 20BR/LB | APPS NO. 1 SIGNAL |
| 6 | F855 20PK/YL | 5 VOLT SUPPLY |
