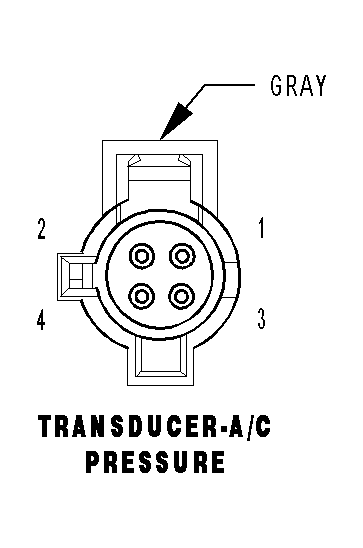

A/C Pressure Transducer Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

TRANSDUCER-A/C PRESSURE - GRAY 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C918 20BK/LB	FCM SENSOR RETURN
2	F891 20PK/GY	5 VOLT SUPPLY
3	C18 20LB/BR	A/C PRESSURE SIGNAL
4	-	-
