A/C Heater Control (Manual Temperature Control) Connector End View (C3)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

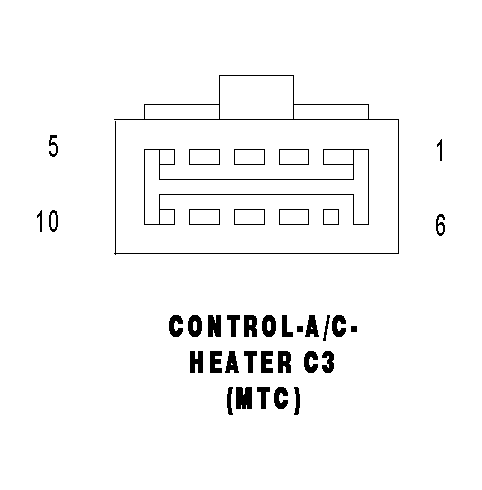

CONTROL-A/C-HEATER C3 (MTC) - 10 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C70 12LB |
BLOWER HIGH SPEED |
| 2 |
C41 18LG |
BLOWER SWITCH POSITION SIGNAL |
| 3 |
C73 12GY/LG |
BLOWER M2 SPEED |
| 4 |
Z134 12BK/LG |
GROUND |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
C72 12OR/LG |
BLOWER M1 SPEED |
| 10 |
C71 20RD/LG |
BLOWER LOW SPEED |
