A/C Heater Control (Manual Temperature Control) Connector End View (C2)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

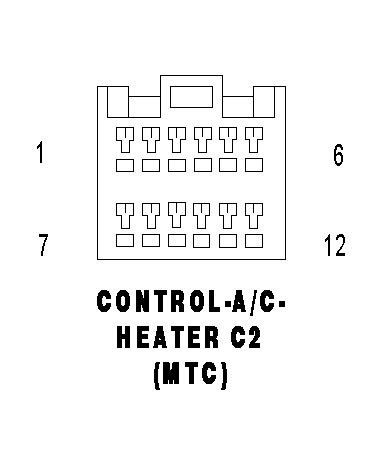

CONTROL-A/C-HEATER C2 (MTC) - 12 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | C266 20DB/WT | FRONT MODE DOOR DRIVER |
| 2 | C66 20DB/LB | FRONT MODE DOOR COMMON DRIVER |
| 3 | C139 20WT/BR | REAR MODE DOOR DRIVER |
| 4 | C939 20BR/PK | REAR MODE DOOR COMMON DRIVER |
| 5 | C255 20LG/YL | LEFT BLEND DOOR DRIVER |
| 6 | C55 20LB/YL | LEFT BLEND DOOR COMMON DRIVER |
| 7 | C268 20DB/OR | RECIRCULATION DOOR DRIVER |
| 8 | C68 20DG/WT | RECIRCULATION DOOR COMMON DRIVER |
| 9 | C21 20WT/BK | EVAPORATOR TEMPERATURE SENSOR SIGNAL |
| 10 | C121 20RD/BK | SENSOR GROUND |
| 11 | C41 18LG | BLOWER SWITCH POSITION SIGNAL |
| 12 | - | - |
