A/C Heater Control (Manual Temperature Control) Connector End View (C1)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

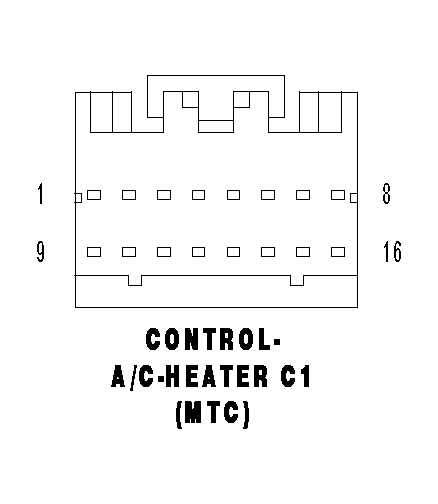

CONTROL-A/C-HEATER C1 (MTC) - 16 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | F921 20PK/YL | FUSED RUN RELAY OUTPUT |
| 2 | - | - |
| 3 | Z906 18BK | GROUND |
| 4 | C221 20LB/OR | A/C SWITCH SENSE |
| 5 | C115 20DB | DEFOGGER RELAY CONTROL |
| 6 | - | - |
| 7 | E2 20OR/BR | PANEL LAMPS DRIVER |
| 8 | - | - |
| 9 | E16 20OR/GY | INDICATOR DIMMER SIGNAL |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
