Section 587 (Cruise Control Systems): Reservoir-Vacuum: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

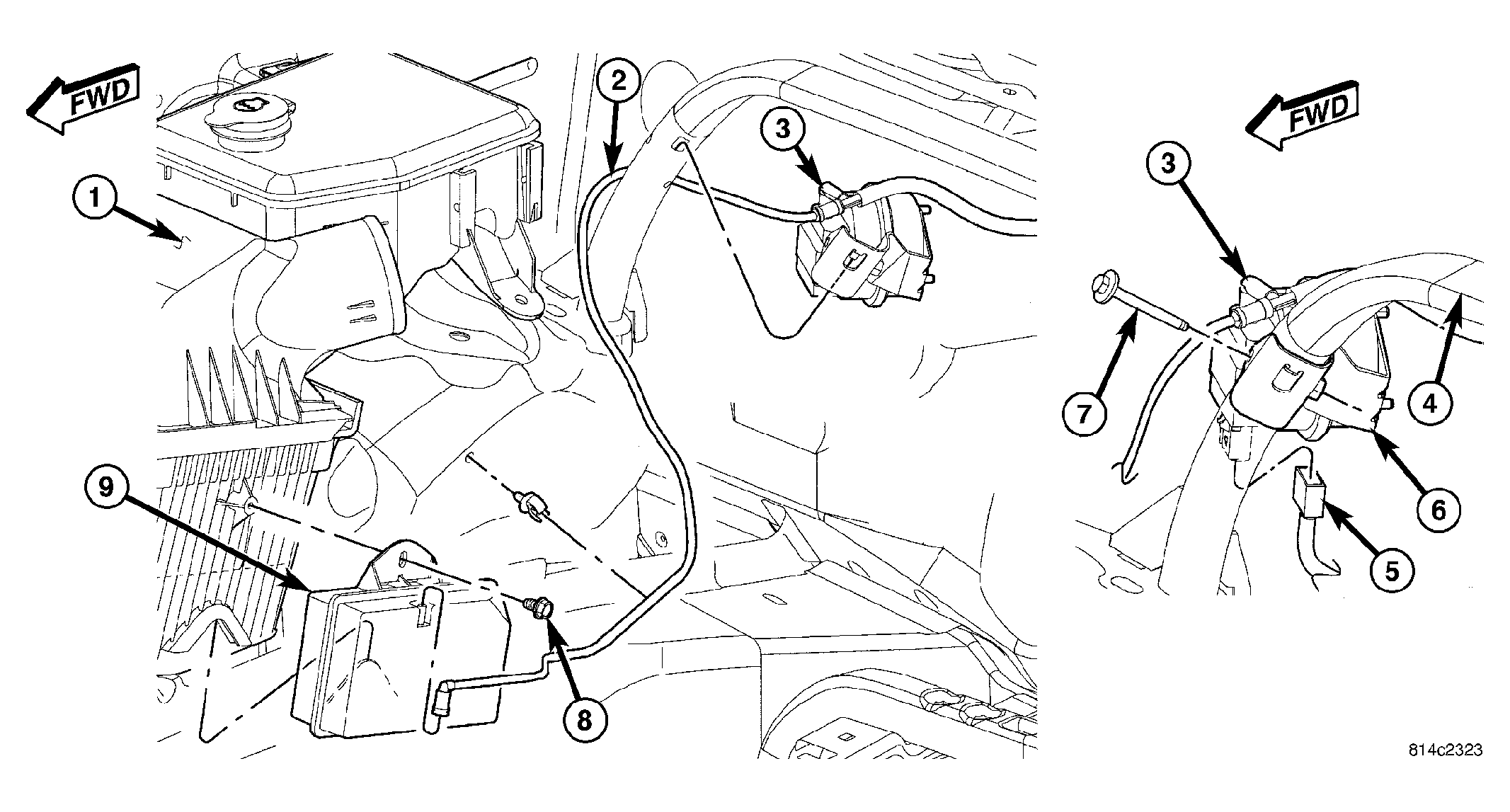

| 1 - Air Cleaner Box |
| 2 - Vacuum Line |
| 3 - Speed Control Servo |
| 4 - Cross Support |
| 5 - Electrical. Connector |
| 6 - Servo Mounting Bracket |
| 7 - Servo Mounting Bolt |
| 8 - Vacuum Reservoir Mounting Bolt |
| 9 - Vacuum Reservoir |
The vacuum reservoir (9) is attached to the side of the air cleaner filter housing (1).
- Disconnect vacuum line (2) at reservoir.
- Remove reservoir mounting bolt (8).
- Remove reservoir (9).
