Section 586 (Horn System (Service Information)): Switch-Horn: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO RESTRAINTS - SERVICE INFORMATION
BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

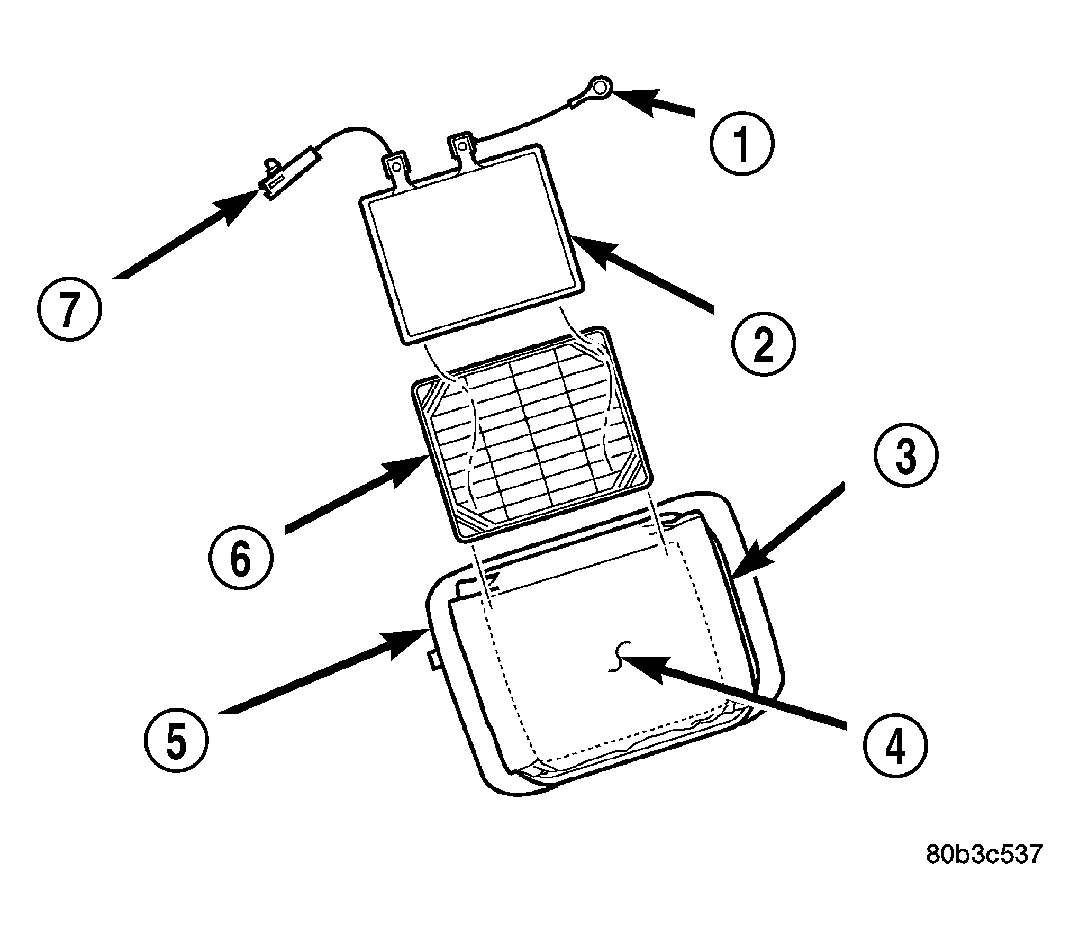

- Install the horn switch (2) and tray as a unit into the pouch on the retaining strap of the driver side airbag (5). NOTE: Be certain that the tray is facing the airbag module, that the horn switch is facing the trim cover, that the horn switch feed wire is on the left, and that the horn switch ground wire is on the right.
- Install the trim cover onto the driver side airbag. (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - INSTALLATION) for the procedure.
- Connect the battery negative cable.
