Section 586 (Horn System (Service Information)): Horn: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

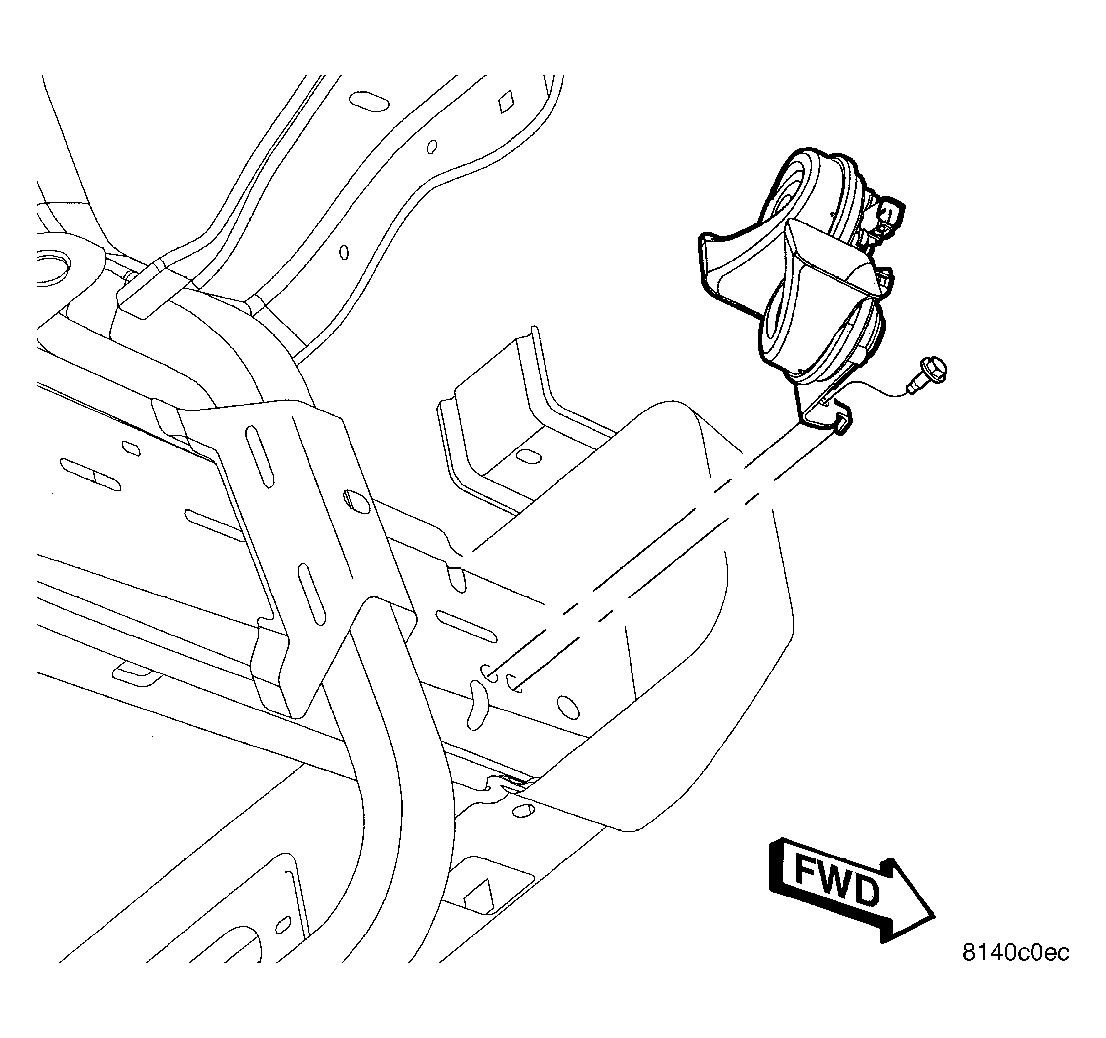

Fig 1: Removal And Installation Of Horn System
GC0029095Courtesy of DAIMLERCHRYSLER CORP.
  1. Position both horns and the mounting bracket.
  2. Install and tighten the mounting fastener.
  3. Connect the electrical harness connectors.
  4. Install the lower front half of the inner liner to the right front fender wheel house.
  5. Lower the vehicle.
  6. Connect the battery negative cable.
