Section 585 (Instrument Cluster (Service Information)): Switch-Bank-Upper: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

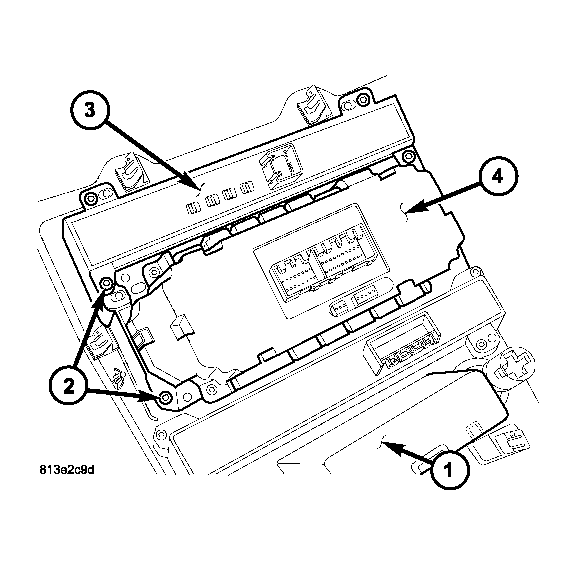

Fig 1: Removing/Installing Upper Switch Bank
GC0029166Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel center bezel (1) (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - REMOVAL) .
  3. Remove the four upper instrument panel switch pod (3) fasteners front the center bezel (1).
