Section 585 (Instrument Cluster (Service Information)): Switch-Bank-Upper: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

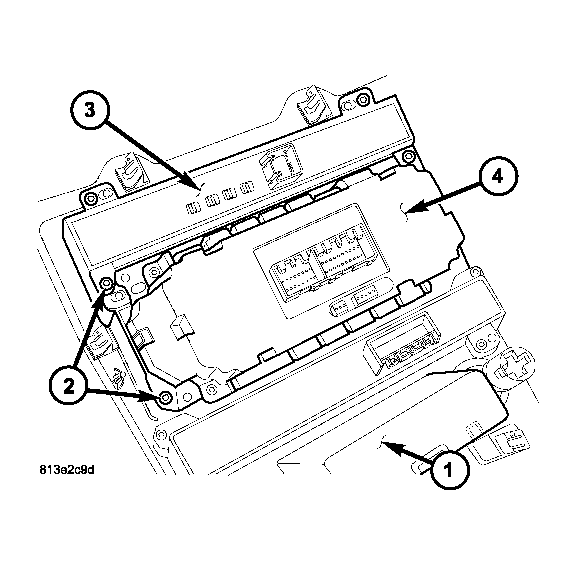

- Position the upper instrument panel switch pod (3) into the instrument panel center bezel (1).
- Install the four upper instrument panel switch pod (3) fasteners.
- Install the instrument panel center bezel (1) (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - INSTALLATION) .
- Connect the battery negative cable.
