Cluster Lens, Housing, And Rear Cover

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

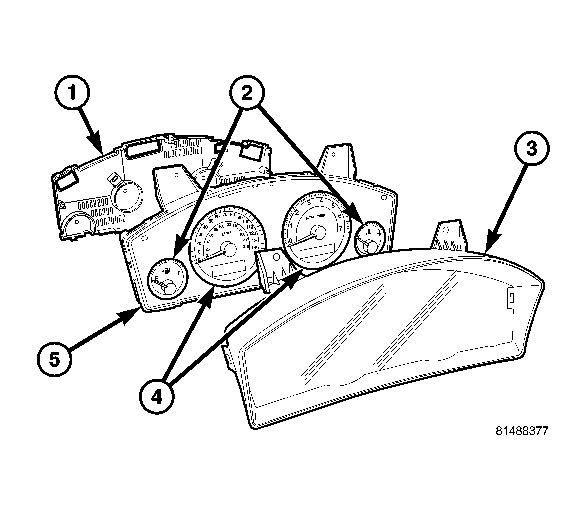

Fig 1: Identifying EMIC Gauge Cluster Lens, Housing & Rear Cover
GC0029156Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the instrument cluster from the instrument panel. (Refer to ELECTRICAL/INSTRUMENT CLUSTER - REMOVAL) .
  2. Work around the perimeter of the cluster housing to disengage each of the latches that secure the cluster lens (3) to the cluster housing (5).
  3. Work around the perimeter of the cluster housing to disengage each of the latches that secure the rear cover (1) to the cluster housing (5).
