Circuit Schematic

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

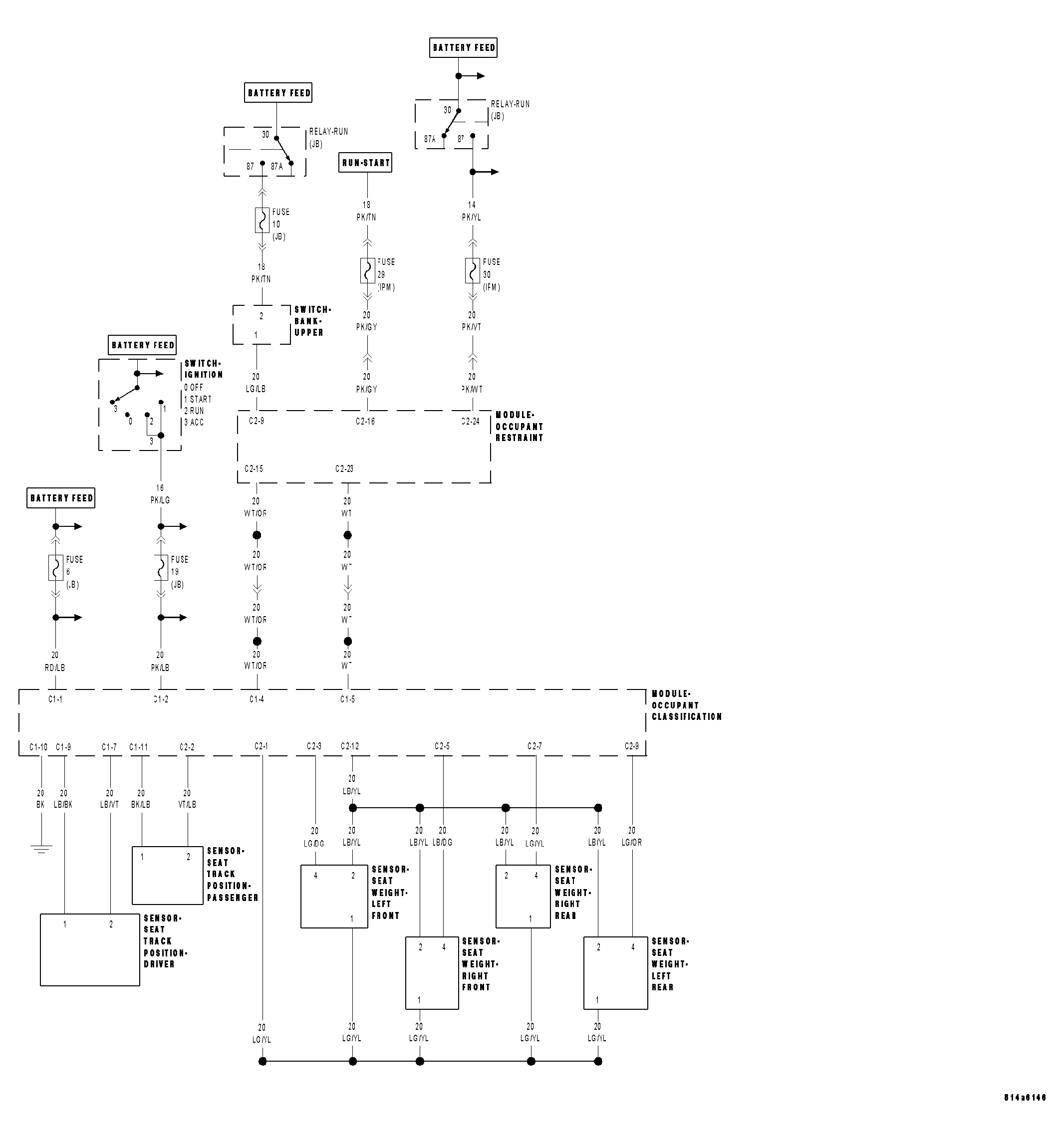

Fig 1: Occupant Classification Module Circuit Diagram
GC0027626Courtesy of DAIMLERCHRYSLER CORP.

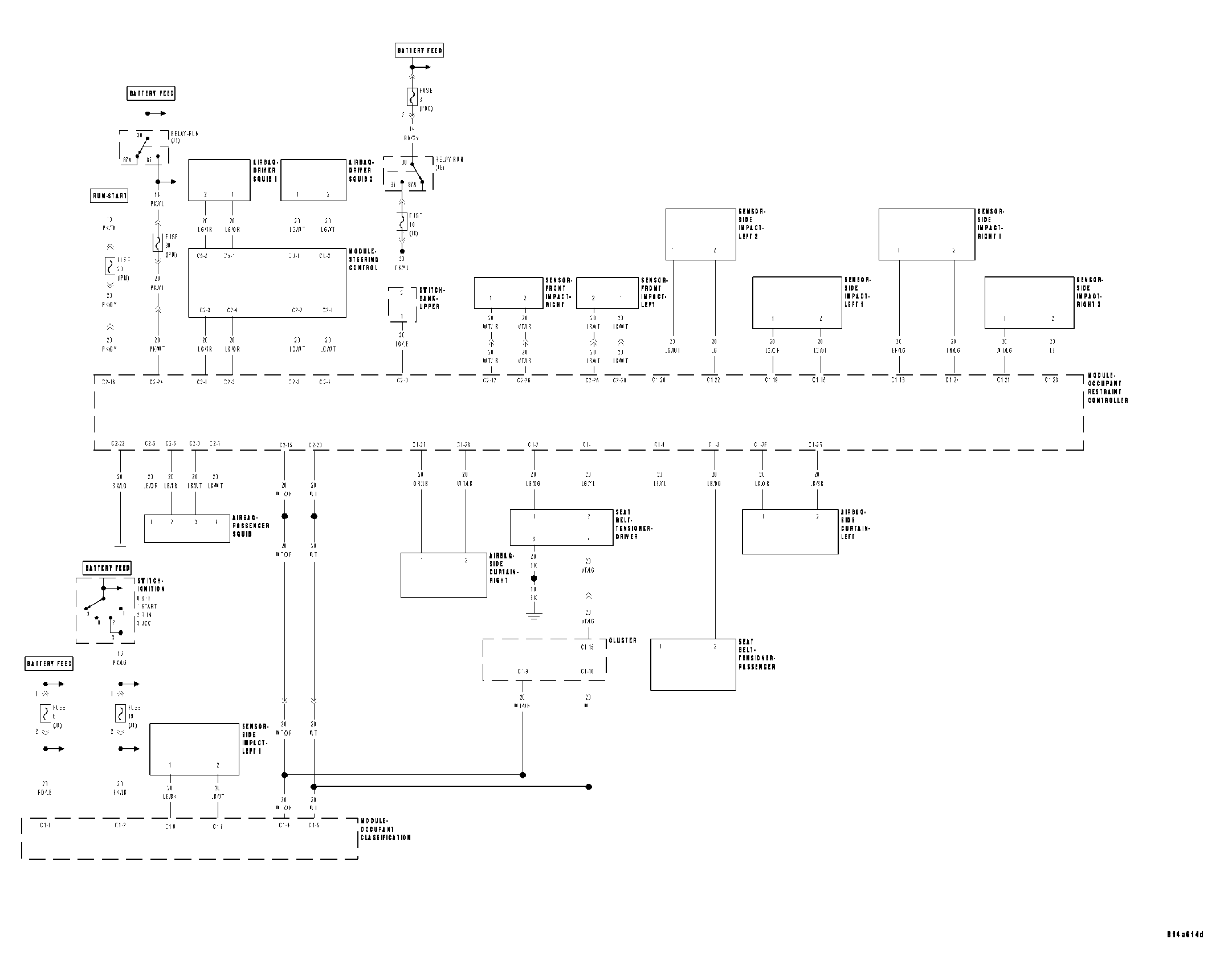

Fig 2: Occupant Restraint Controller Module Circuit Diagram
GC0027627Courtesy of DAIMLERCHRYSLER CORP.

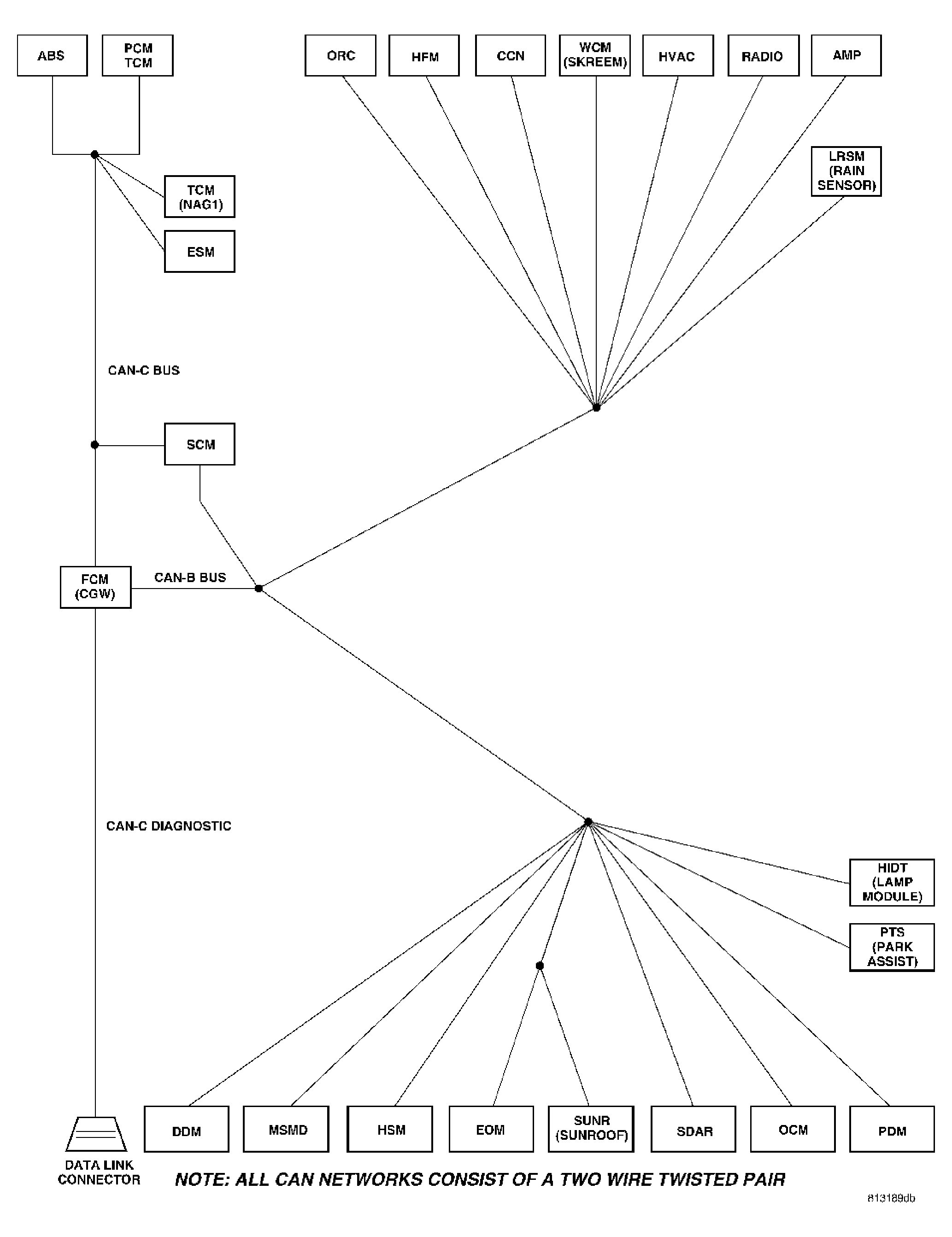

Fig 3: Can Network Topology Chart
GC0014610Courtesy of DAIMLERCHRYSLER CORP.
