Circuit Schematic

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

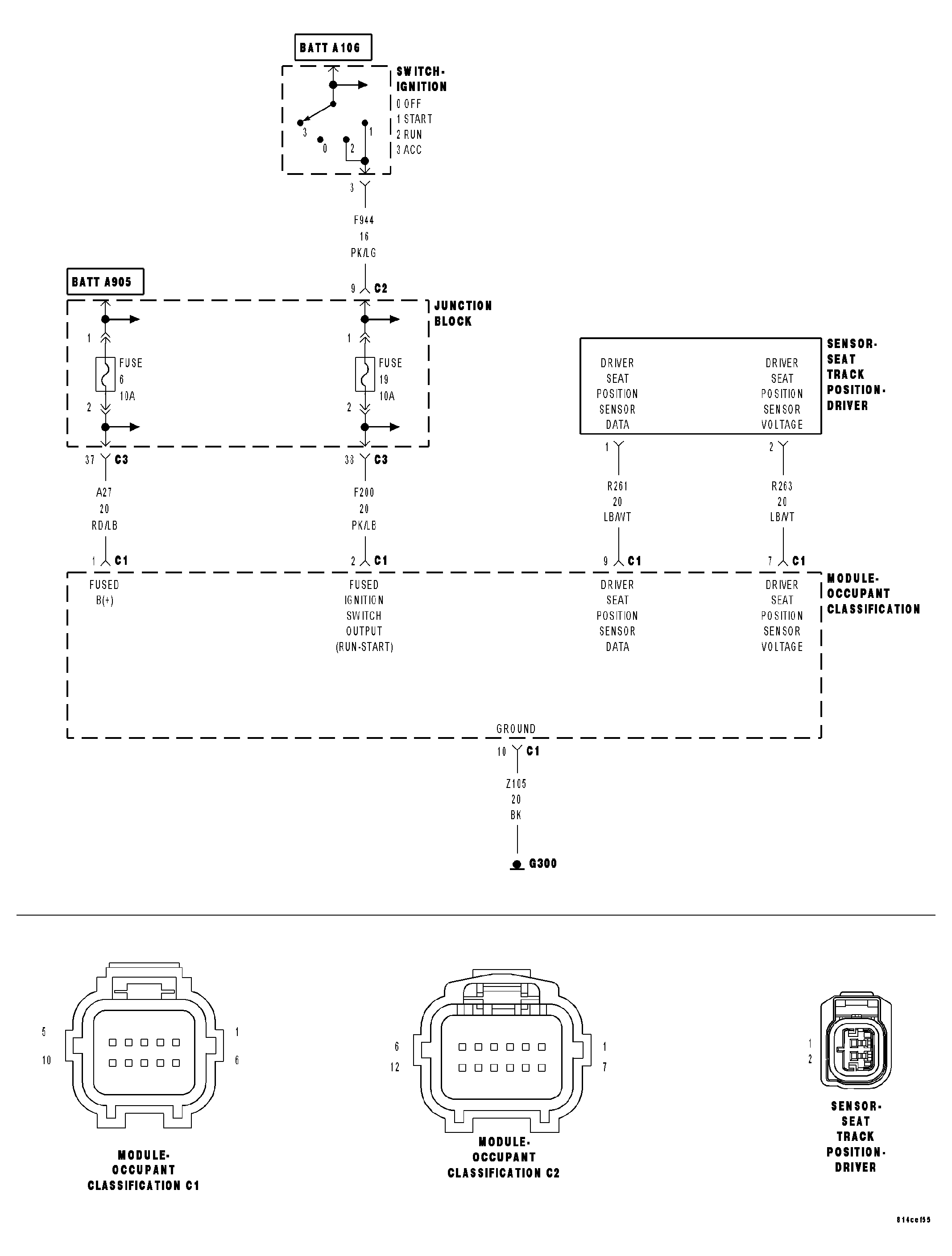

Fig 1: Driver Seat Track Position Sensor Circuit Diagram
GC0027687Courtesy of DAIMLERCHRYSLER CORP.

For the Occupant Classification System circuit diagram (Refer to ELECTRICAL/RESTRAINTS - SCHEMATICS AND DIAGRAMS) .
