Overhead Console - Service Information: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

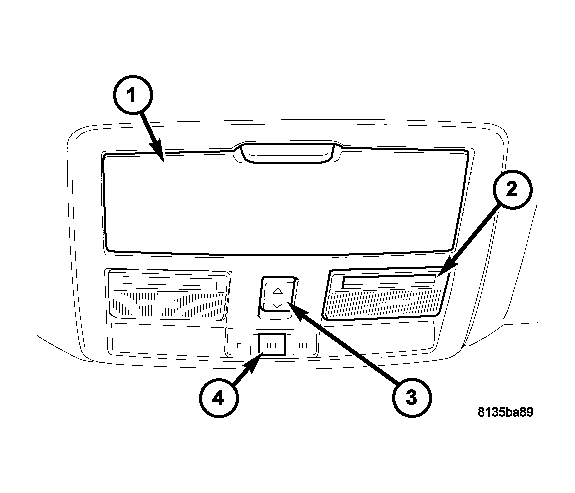

Fig 1: Identifying Overhead Console Components
GC0029279Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Pull downward on the sides of the overhead console housing firmly and evenly to disengage the snap clips from the overhead console bracket.

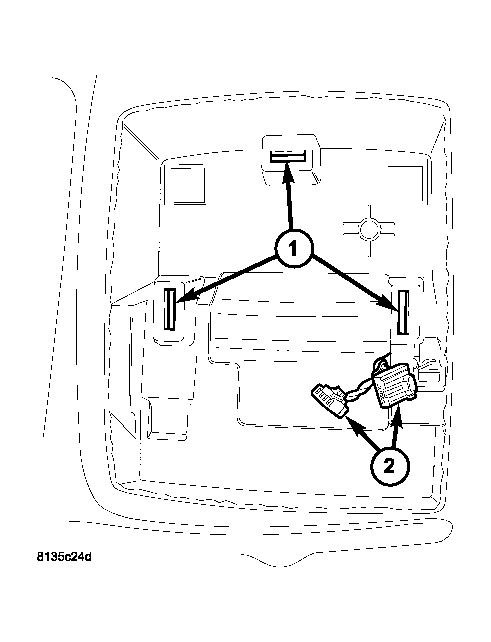

    Fig 2: Identifying Receptacles & Wire Harness Connectors
    GC0029280Courtesy of DAIMLERCHRYSLER CORP.
  3. Lower the overhead console from the headliner far enough to access the wire harness connectors (2).
  4. Disconnect the roof wire harness connectors (2) from the overhead console wire harness connector.
  5. Remove the overhead console from the headliner.
