Electronic Vehicle Information Center: Description

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

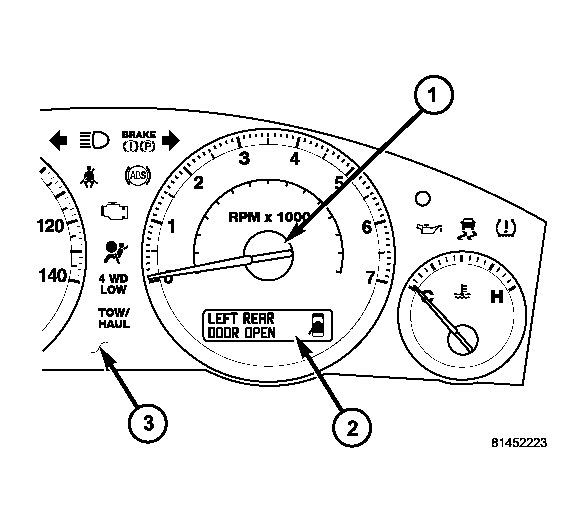

Fig 1: Identifying Tachometer, Driver-Interactive Display & Instrument Cluster

Courtesy of DAIMLERCHRYSLER CORP.

The Electronic Vehicle Information Center (EVIC) features a driver-interactive display (2). The display is located in the lower part of the tachometer (1) on the right side of the instrument cluster (3). This system conveniently allows the driver to select a variety of useful information by pressing the switches mounted on the center stack of the instrument panel. The EVIC displays information related to the following:

System Status
Vehicle information warning message displays
Tire Pressure Monitor System - If Equipped
Personal Settings (customer programmable features)
Compass display
Outside temperature display
Trip computer functions

The EVIC system is comprised of several different components. Those components are:

Instrument Cluster
Upper instrument panel switch pod
Ambient Temperature Sensor
Electronic Overhead Module
Controller Area Network (CAN) Data Bus

The EVIC display is part of the Instrument Cluster assembly and is not serviced as a separate component. If the display is inoperative the complete Instrument Cluster assembly must be replaced, (Refer to ELECTRICAL/INSTRUMENT CLUSTER - REMOVAL) . If the EVIC switches in the upper instrument panel switch pod are inoperative and require replacement, Refer to INSTRUMENT CLUSTER - SERVICE INFORMATION for the appropriate procedure. If the compass position sensor (Electronic Overhead Module) is inoperative and requires replacement, (Refer to ELECTRICAL/OVERHEAD CONSOLE/UNIVERSAL TRANSMITTER - REMOVAL) for the appropriate procedure.
