Diagnostic Test

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

1) CHECK TO SEE IF DTC P0888 IS CURRENT
With the scan tool, Check the STARTS SINCE SET counter for P0888.

NOTE: This counter only applies to the last DTC set.

Is the STARTS SINCE SET counter equal to 0?

Yes
1. Go To step 2).
No
1. Go To step 9).
2) (A104) FUSED B+ CIRCUIT OPEN

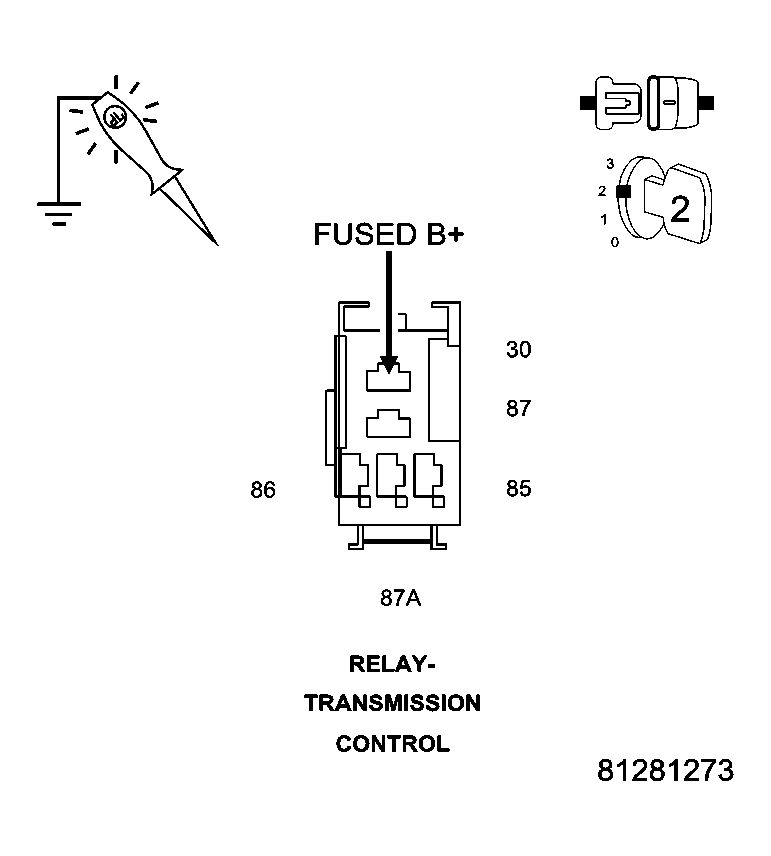

Fig 1: Checking Fused B+ Circuit (545RFE)
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.

Ignition on, engine not running.

Using a 12-volt test light connected to ground, check the (A104) Fused B+ circuit in the Transmission Control Relay connector.

NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes
1. Go To step 3).
No
1. Repair the (A104) Fused B+ circuit for an open. If the fuse is open make sure to check for a short to ground.
2. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1 .
3) (Z915) TRANSMISSION CONTROL RELAY GROUND CIRCUIT OPEN

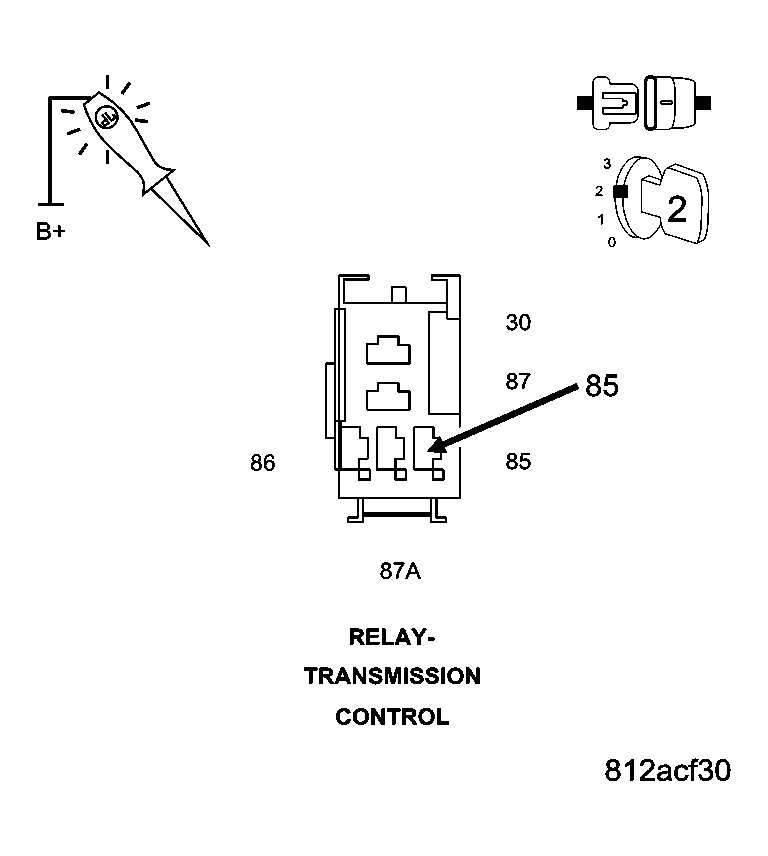

Fig 2: Checking Transmission Control Relay Ground Circuit for Open
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Using a 12-volt test light connected to 12-volts, check the (Z915) Transmission Control Relay Ground circuit in the Transmission Control Relay connector.

Does the test light illuminate brightly?

Yes
1. Repair the (Z915) Transmission Control Relay Ground circuit for an open.
2. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1 .
No
1. Go To step 4).
4) TRANSMISSION CONTROL RELAY
Install a substitute relay in place of the Transmission Control Relay.

Start the vehicle.

With the scan tool, check transmission DTCs.

Did the DTC P0888 reset?

Yes
1. Replace the Transmission Control Relay.
2. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1 .
No
1. Go To step 5).
5) (T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN

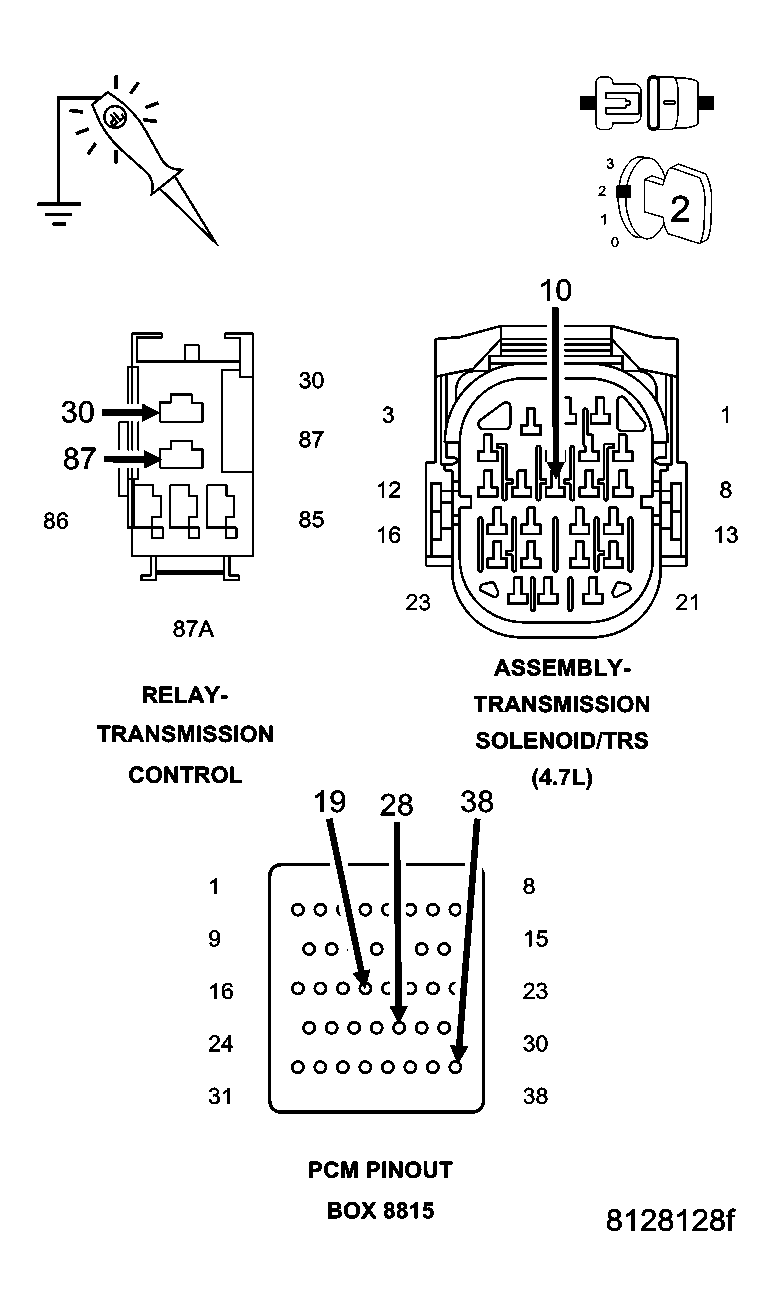

Fig 3: Checking Transmission Control Relay Output Circuit
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the PCM C4 harness connector and connect Miller tool #8815.

Disconnect the Transmission Solenoid/TRS Assembly harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller tool #8815 to perform diagnosis.

Connect a jumper wire between the (A104) Fused B+ circuit and the Transmission Control Relay Output circuit in the Transmission Control Relay connector.

Ignition on, engine not running.

Using a 12-volt test light connected to ground, check all four (T16) Transmission Control Relay Output circuits in the PCM C4 harness connector and Transmission Solenoid/TRS Assembly harness connector.

Does the test light illuminate brightly on all four (T16) Transmission Control Relay Output circuits?

Yes
1. Go To step 6).
No
1. Repair the (T16) Transmission Control Relay Output circuit(s) for an open or high resistance.
2. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1 .
6) (T16) TRANSMISSION RELAY OUTPUT CIRCUIT SHORT TO GROUND

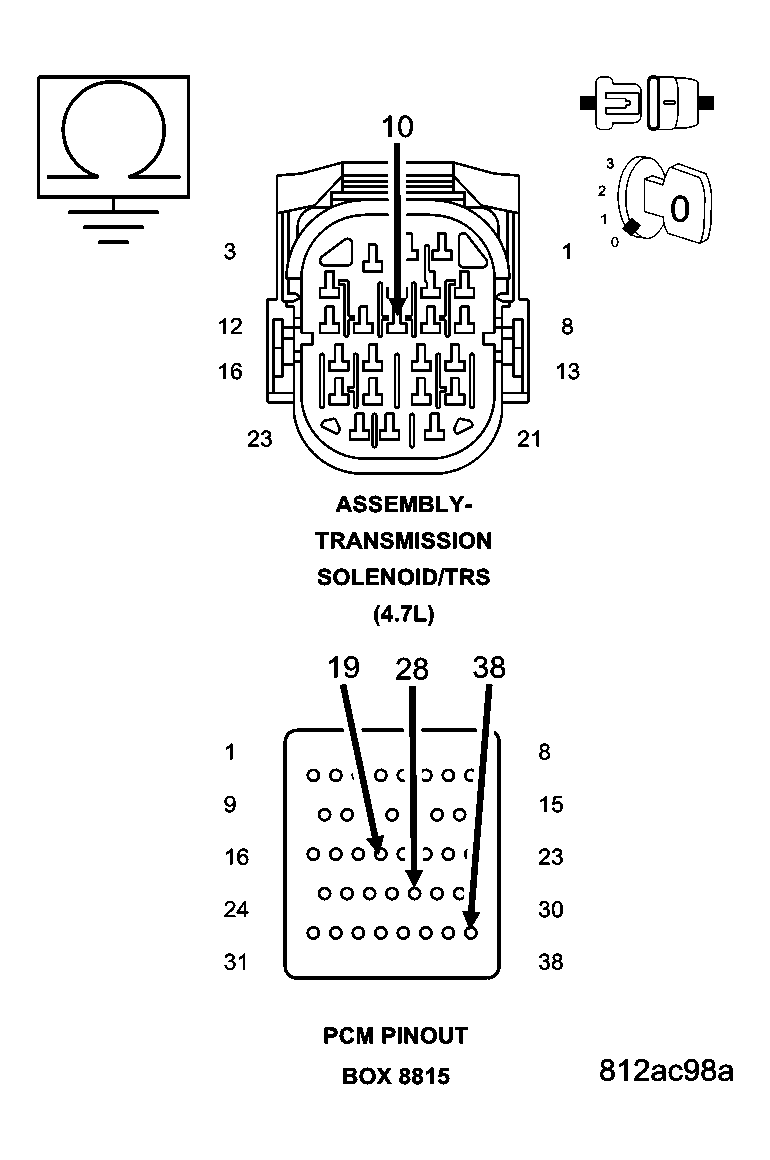

Fig 4: Checking Transmission Relay Output Circuit for Short to Ground
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Measure the resistance between ground and the (T16) Transmission Control Relay Output circuit.

Is the resistance below 5.0 ohms?

Yes
1. Repair the (T16) Transmission Control Relay Output circuit for a short to ground.
2. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1 .
No
1. Go To step 7).
7) (T15) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT SHORT TO GROUND

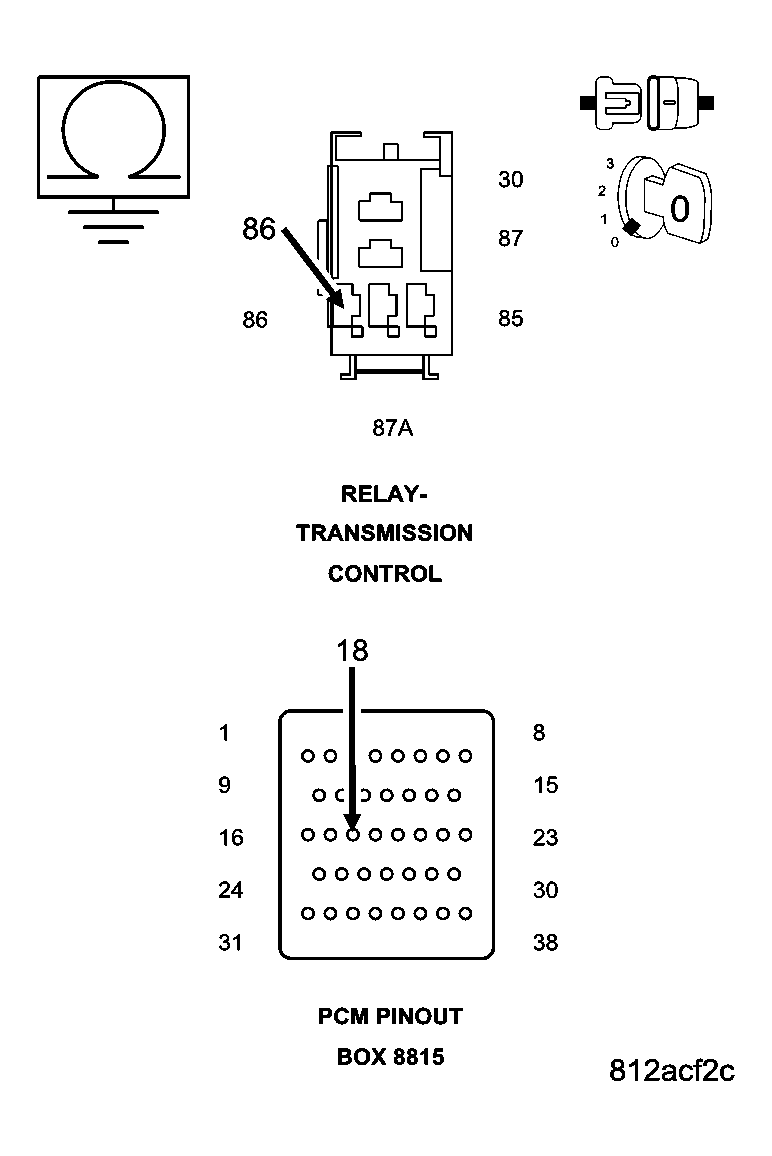

Fig 5: Checking Transmission Control Relay Control Circuit for Short to Ground
Courtesy of DAIMLERCHRYSLER CORP.

Measure the resistance between ground and the (T15) Transmission Control Relay Control circuit.

Is the resistance below 5.0 ohms?

Yes
1. Repair the (T15) Transmission Control Relay Control circuit for a short to ground.
2. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1 .
No
1. Go To step 8).
8) (T15) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT OPEN

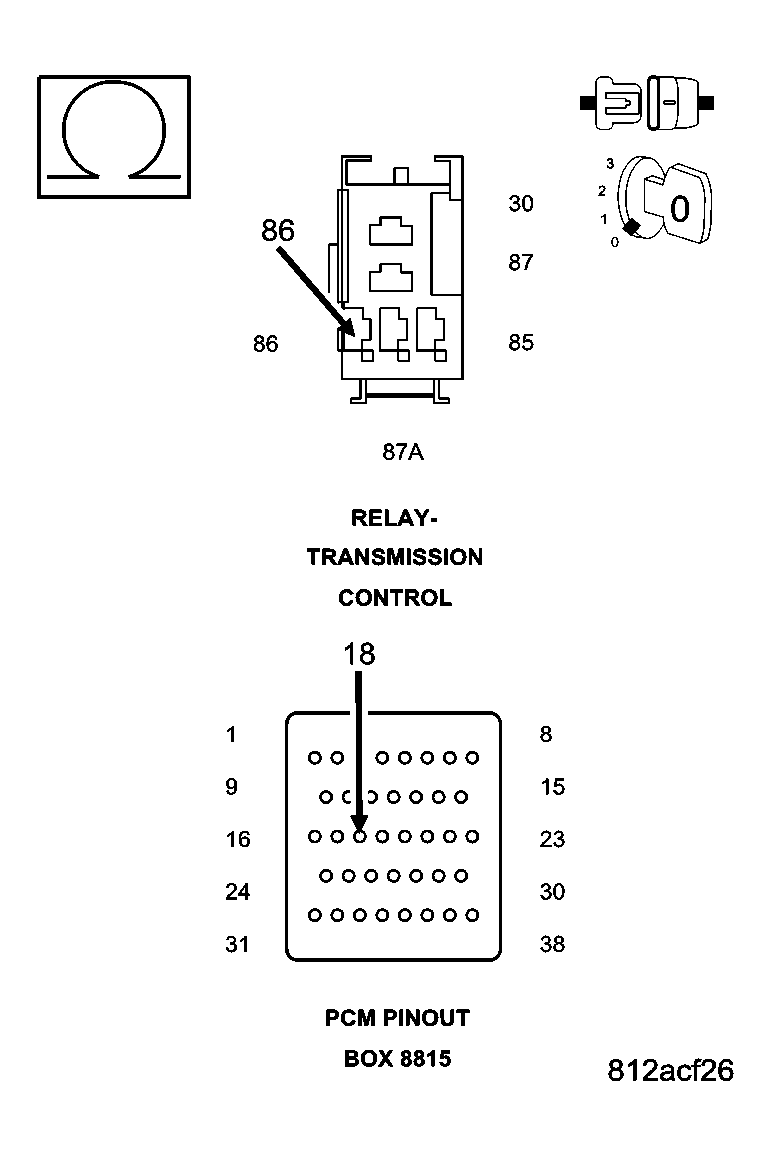

Fig 6: Checking Transmission Control Relay Control Circuit for Open
Courtesy of DAIMLERCHRYSLER CORP.

Measure the resistance of the (T15) Transmission Control Relay Control circuit between the Transmission Control Relay connector and the appropriate terminal of Miller tool #8815.

Is the resistance above 5.0 ohms?

Yes
1. Repair the (T15) Transmission Control Relay Control circuit for an open.
2. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1 .
No
1. Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM per the Service Information. With the scan tool, perform QUICK LEARN.
2. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1 .
9) INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorted and open circuits.

With the scan tool, check the EATX DTC EVENT DATA to help identify the conditions in which the DTC was set.

Where there any problems found?

Yes
1. Repair as necessary.
2. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1 .
No
1. Test Complete.
