Circuit Schematic

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

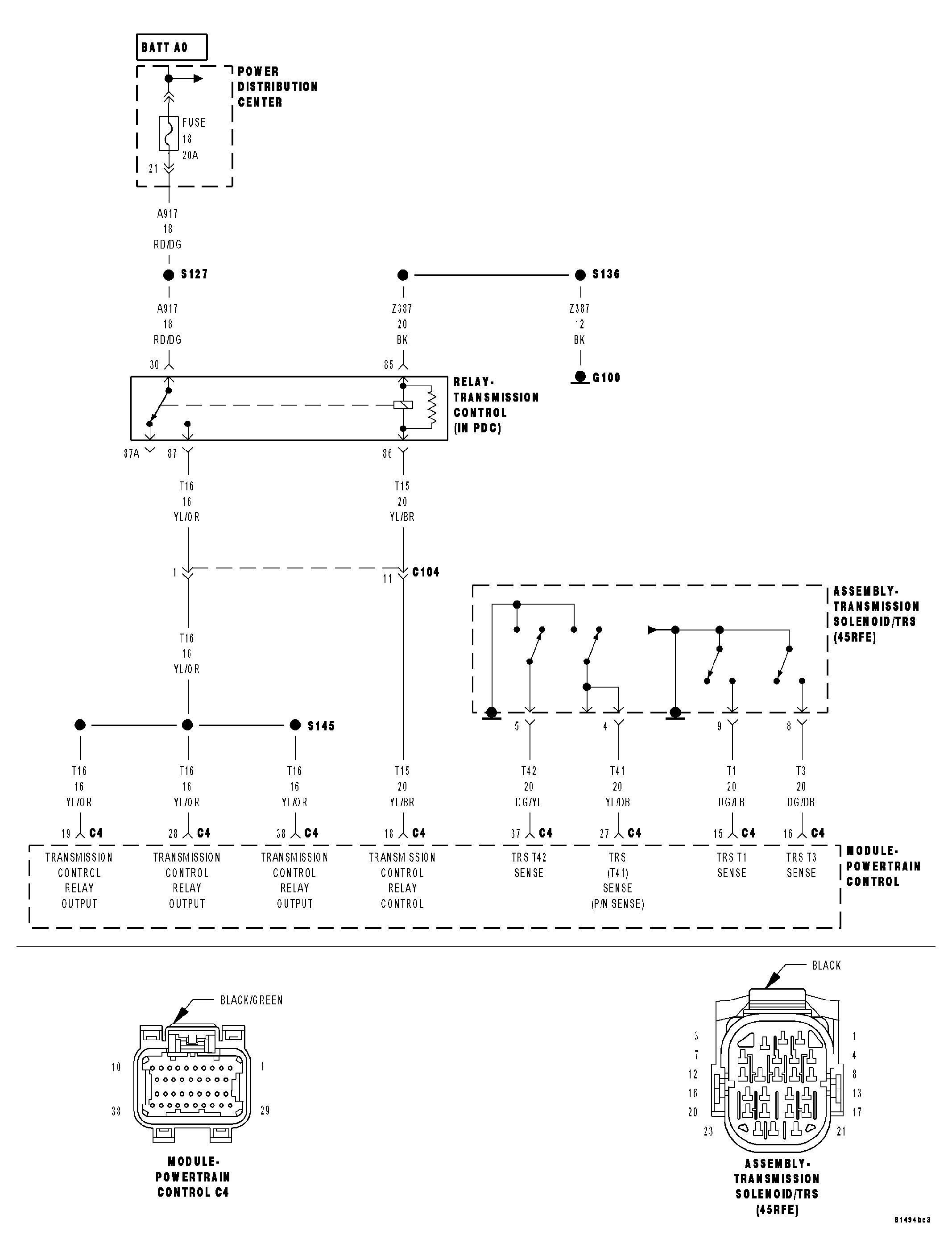

Fig 1: Transmission Solenoid Assembly Switches Circuit Diagram

Courtesy of DAIMLERCHRYSLER CORP.

For the Transmission circuit diagram (Refer to TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - SCHEMATICS AND DIAGRAMS) .
