Seat Belt Buckle: Installation: Rear

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

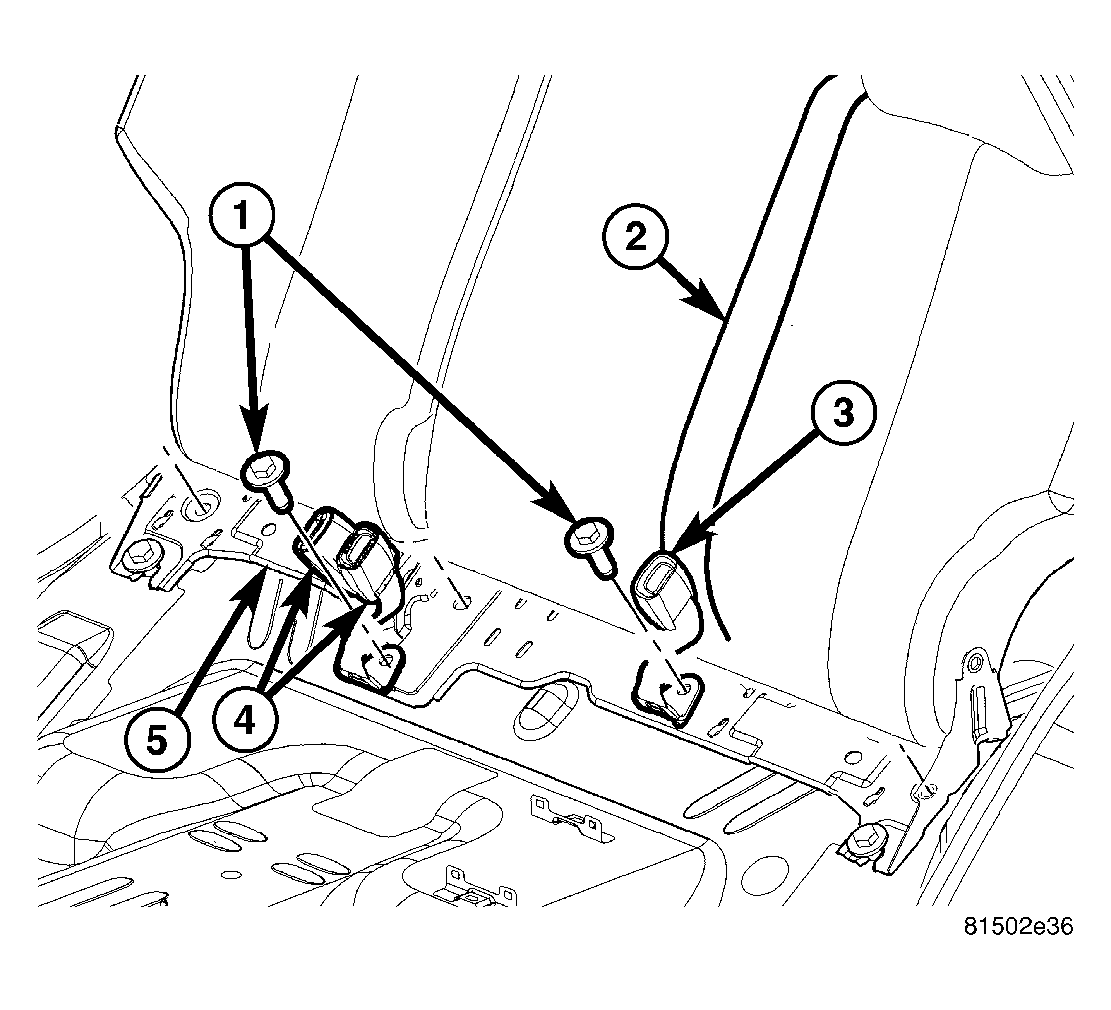

Fig 1: Remove/Install Rear Seat Belt Buckle
GC0027751Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the right outboard and center buckles (4) or the left buckle (3) and center seat belt (2) lower anchor to the rear seat back bracket (5) on the rear floor panel.
  2. Install and tighten the screw (1) that secures the rear seat belt buckle to the rear floor panel. Tighten the screw to 50 N.m (37 ft. lbs.).
  3. Reinstall the rear seat cushion into the vehicle. (Refer to BODY/SEATS/REAR SEAT CUSHION - INSTALLATION) .
