Impact Sensor: Removal: Front
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING:
To avoid personal injury or death, never strike or drop the front impact sensor, as it can damage the impact sensor or affect its calibration. The front impact sensor enables the system to deploy the front supplemental restraints. If an impact sensor is accidentally dropped during service, the sensor must be scrapped and replaced with a new unit. Failure to observe this warning could result in accidental, incomplete, or improper front supplemental restraint deployment.
NOTE:
The front and side impact sensors are interchangeable.
- Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.

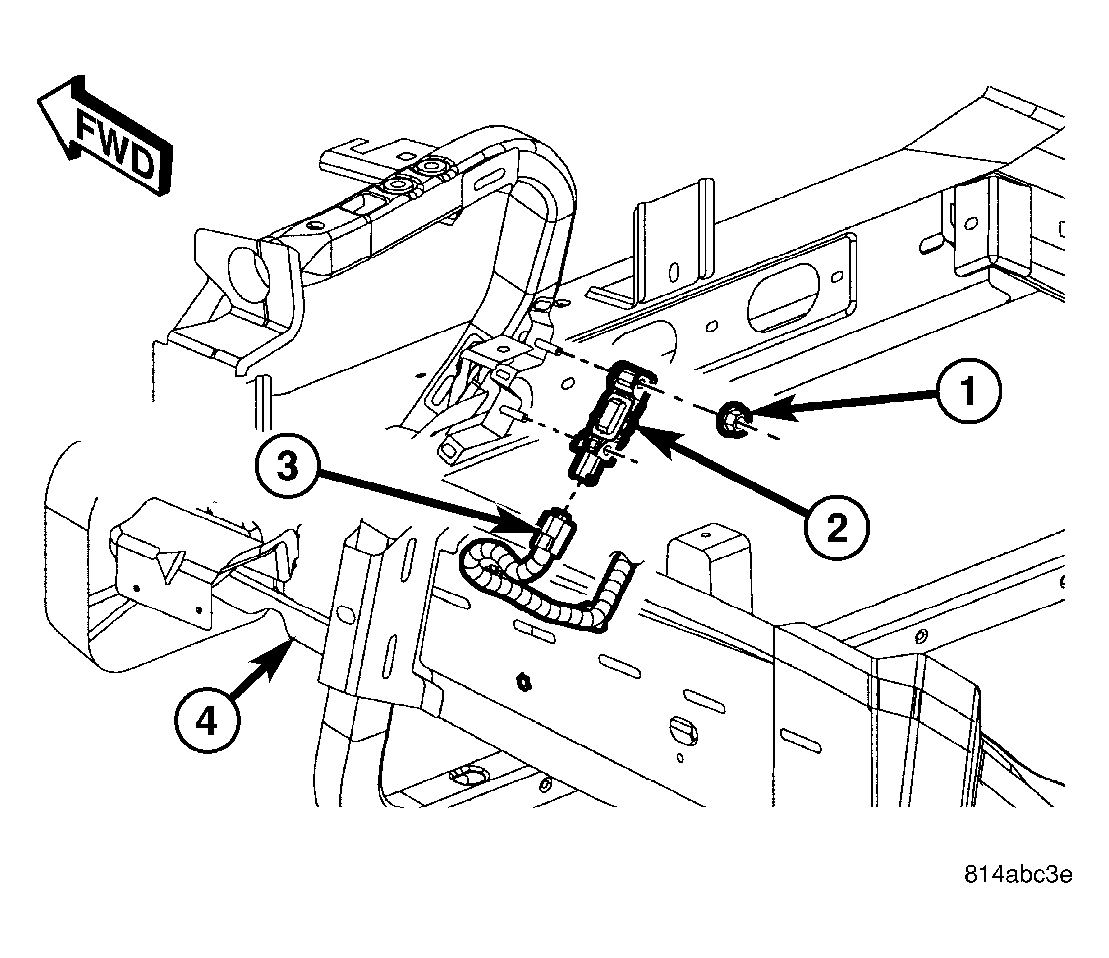

- Remove the two nuts (1) that secure the right or left front impact sensor (2) to the studs on the back of the right or left radiator support vertical member.
- Disconnect the headlamp and dash wire harness connector (3) from the sensor connector receptacle.
- Remove the right or left front impact sensor from the engine compartment.
