*No Response From TCM - Nag1/Diesel: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

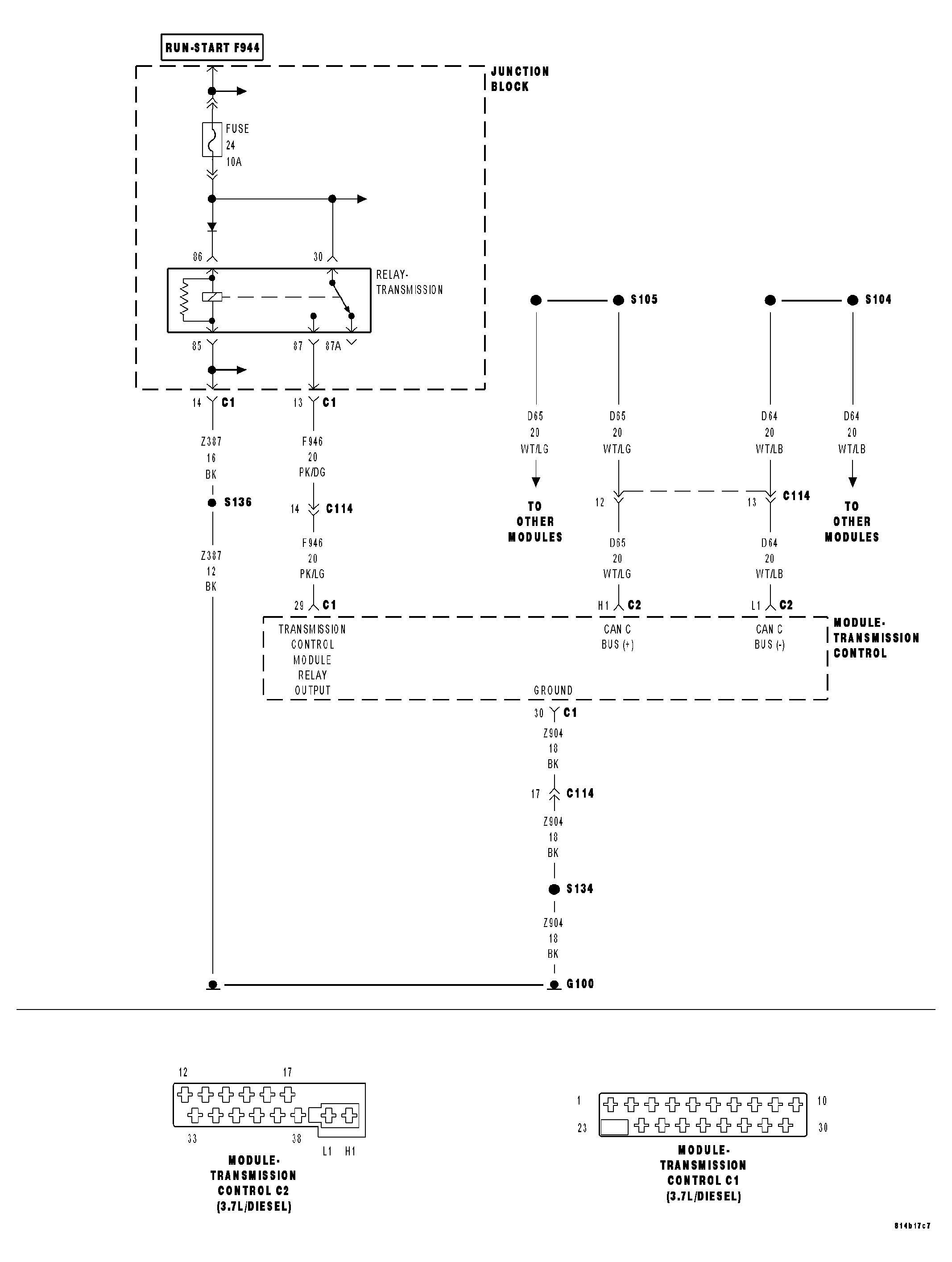

Fig 1: TCM Power, Ground & Communication - NAG1/Diesel
GC0027590Courtesy of DAIMLERCHRYSLER CORP.
