*No Response From SDAR (Satellite Receiver): Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

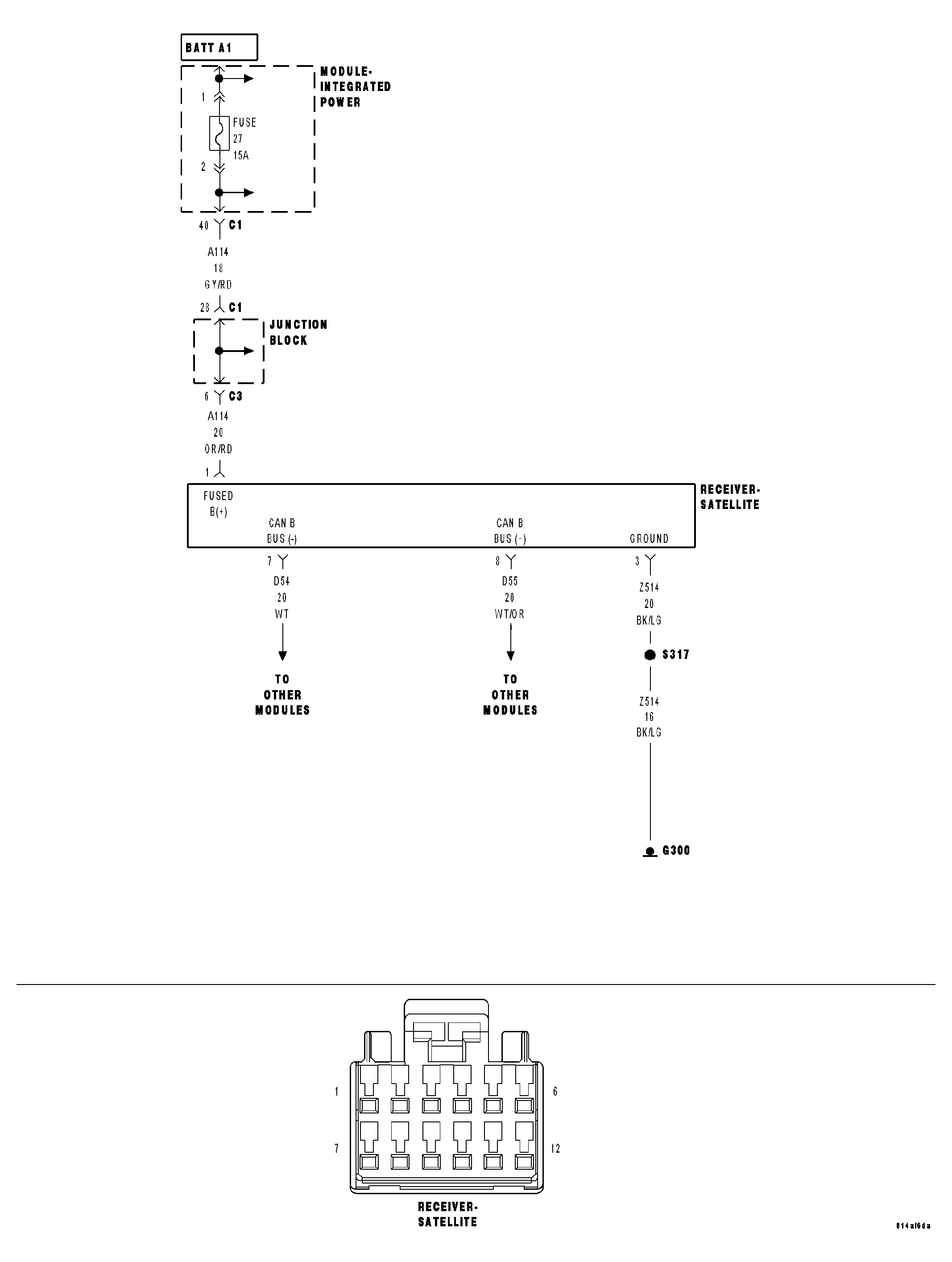

Fig 1: Satellite Receiver Power, Ground & Communication
GC0027578Courtesy of DAIMLERCHRYSLER CORP.
