*No Response From HVAC (A/C Heater Control - ATC Only): Notes
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

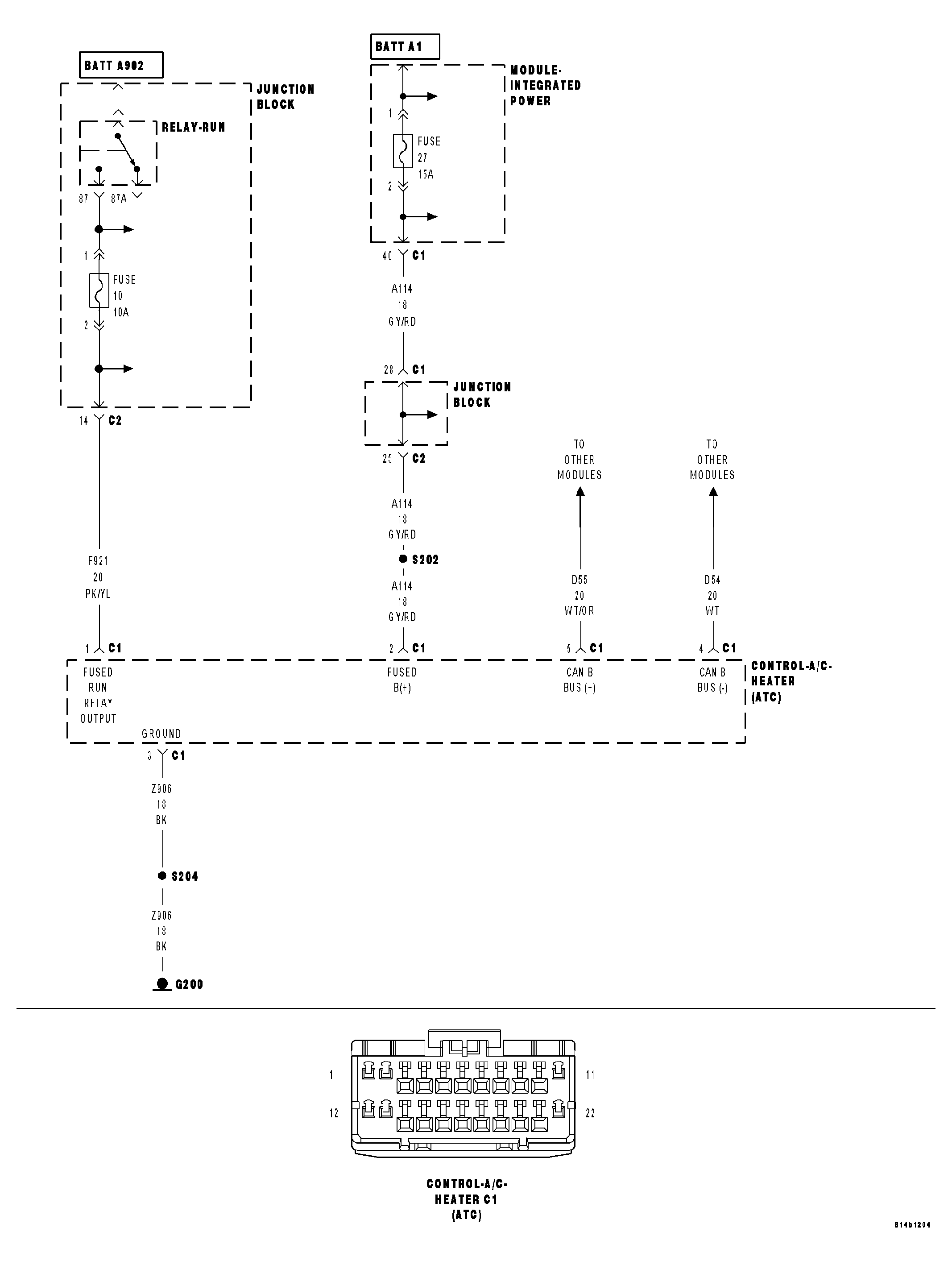

Fig 1: A/C Heater Control Power, Ground & Communication - ATC Only
