*No Response From ESM (Shift Lever Assembly) - Nag1/Diesel: Notes
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

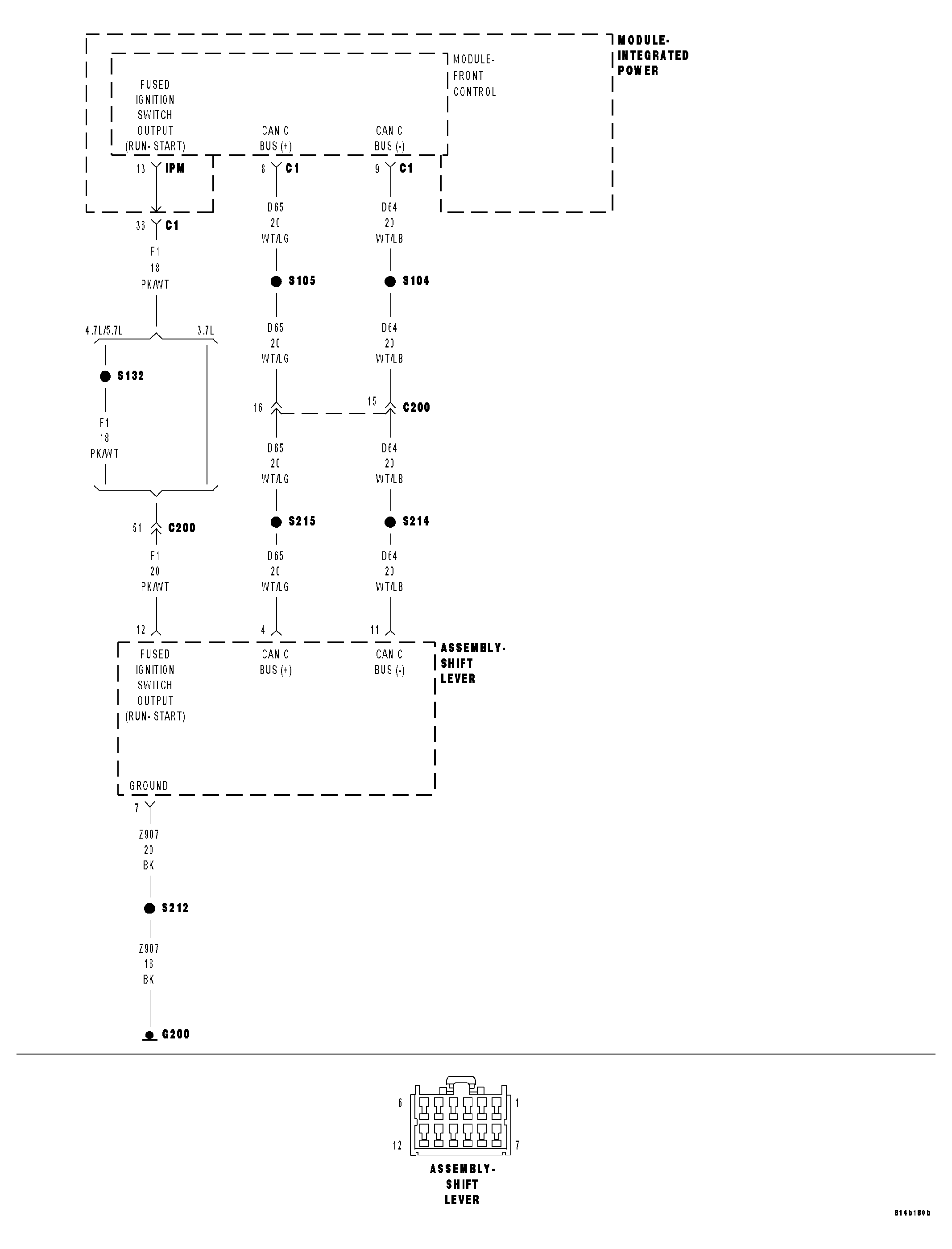

Fig 1: Shift Lever Assembly Power, Ground & Communication (NAG1/Diesel)
