Working Pressure Regulating Valve (Line Pressure or Operating Pressure)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - PRESSURE FROM K1/K2 |
| 2 - END FACE |
| 3 - ANNULAR SURFACE |
| 4 - WORKING PRESSURE REGULATING VALVE |

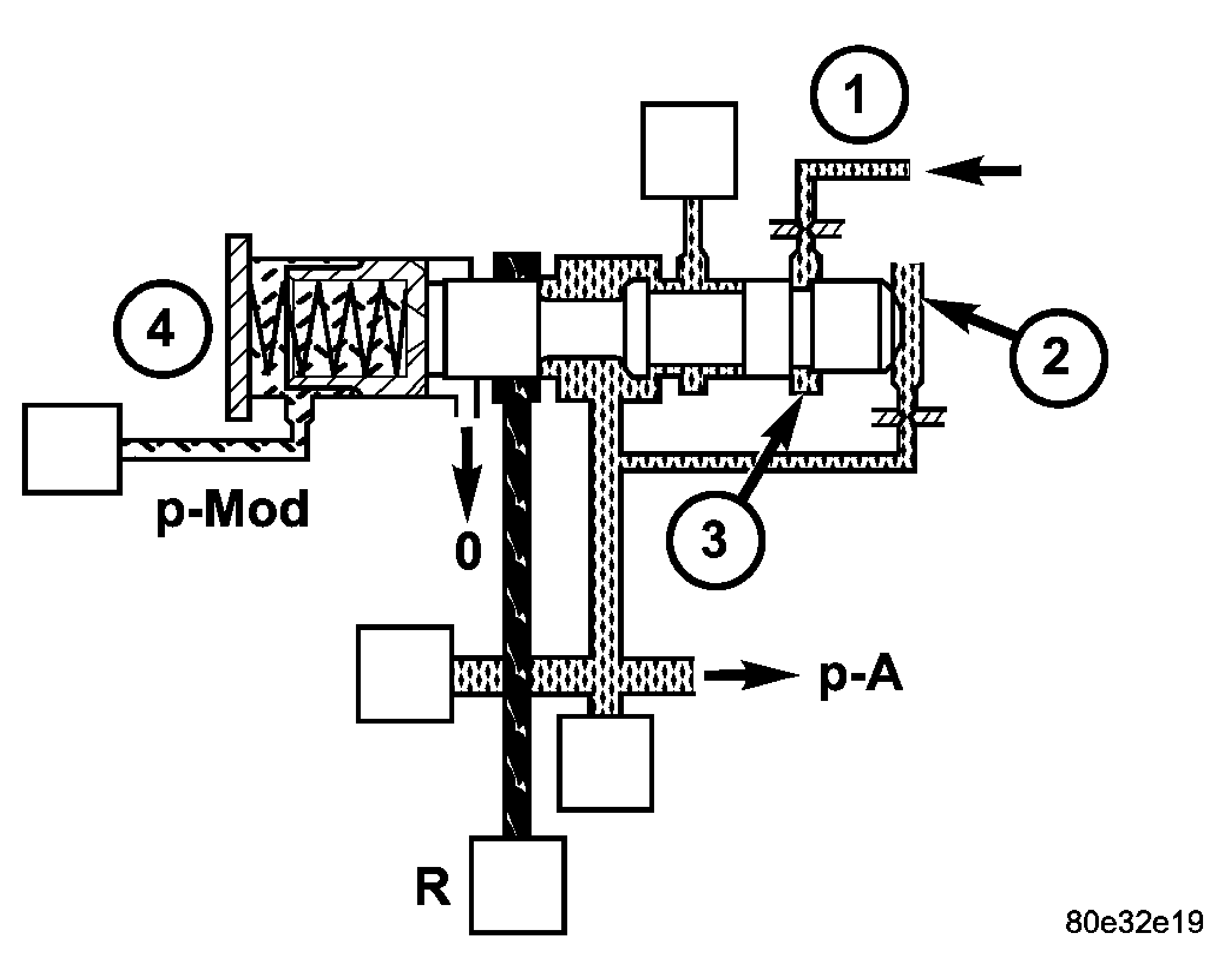

The working pressure (p-A) is regulated at the working pressure regulating valve (4) in relation to load (modulating pressure, p-Mod) and gear (K1 or K2 pressure) (1). The spring in the working pressure regulating valve sets a minimum pressure level (basic pressure). See Fig 1.
