Working Pressure Regulating Valve (Operating Pressure)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

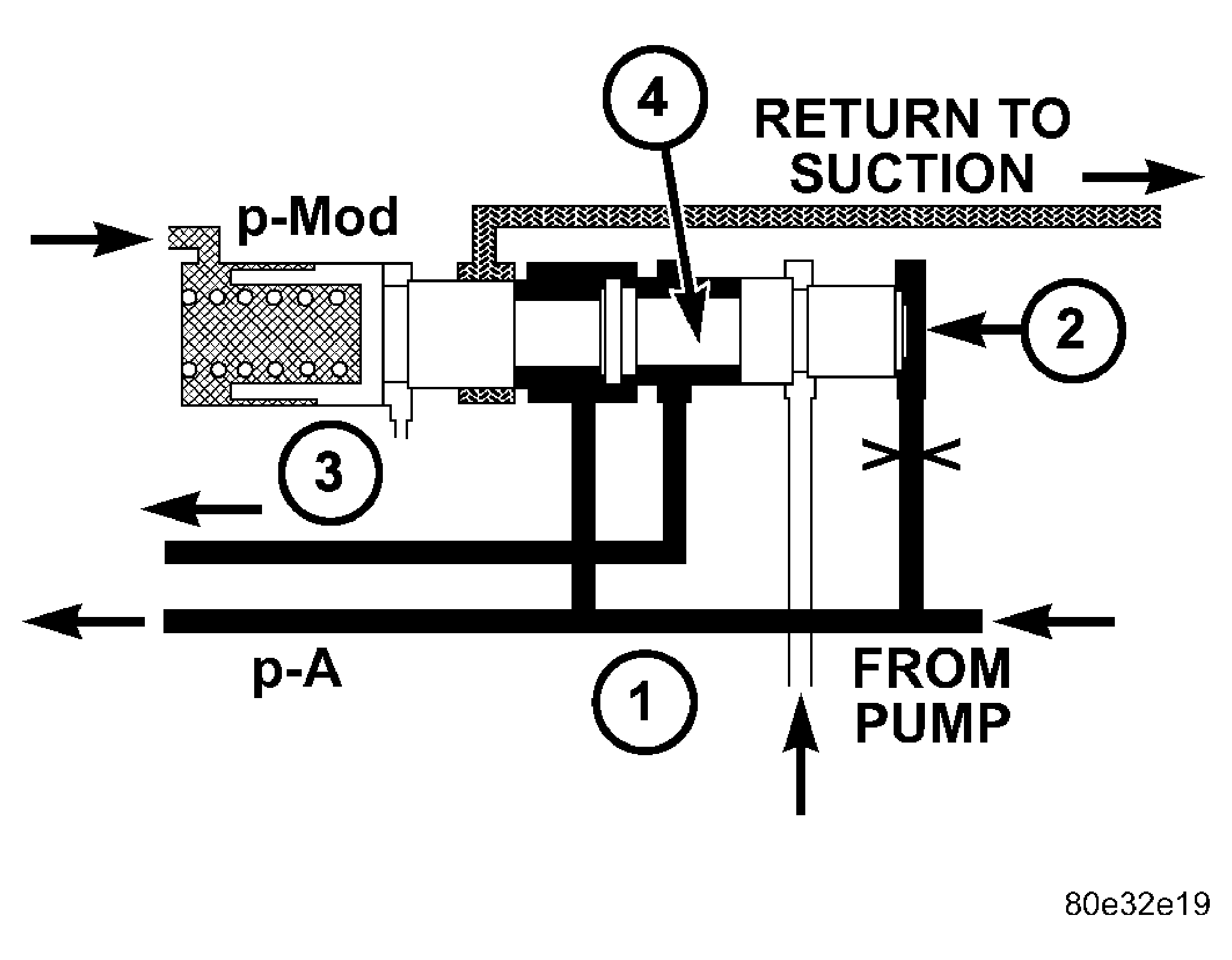

| 1 - PRESSURE FROM K1/K2 |
| 2 - END FACE |
| 3 - TO TORQUE CONVERTER REGULATING VALVE |
| 4 - WORKING PRESSURE REGULATING VALVE |
The working pressure regulating valve (4) is located in the valve housing of the shift plate. It regulates the primary pressure of the hydraulic system. See Fig 1.
