Torque Converter Lockup Clutch Regulating Valve

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

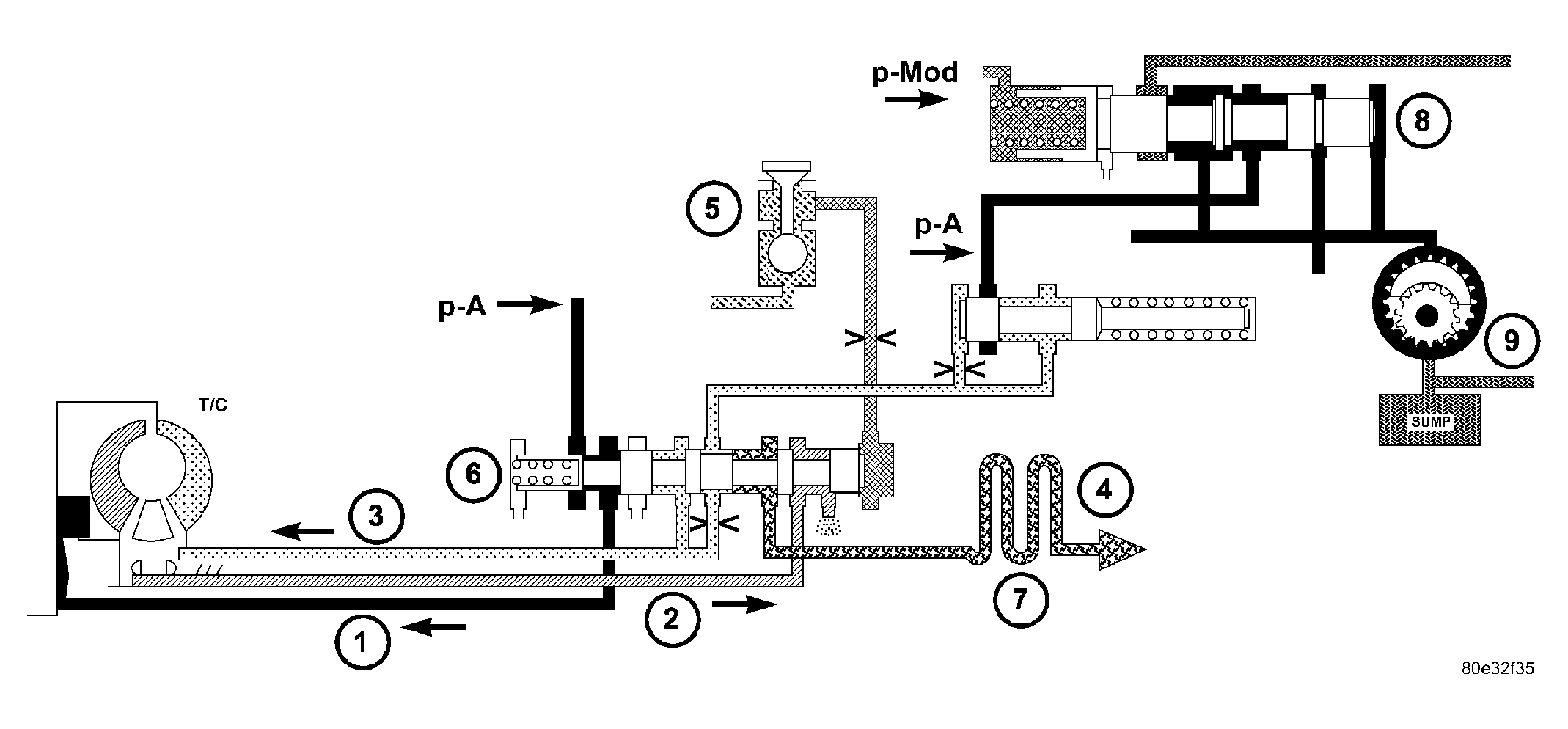

Fig 1: Torque Converter Lockup Clutch Regulating Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - TORQUE CONVERTER LOCK-UP CLUTCH

2 - TORQUE CONVERTER OUTPUT

3 - TORQUE CONVERTER INPUT

4 - LUBRICATION

5 - TORQUE CONVERTER LOCK-UP SOLENOID

6 - TORQUE CONVERTER LOCK-UP CLUTCH REGULATING VALVE

7 - OIL COOLER

8 - LINE PRESSURE REGULATING VALVE

9 - OIL PUMP

The torque converter lock-up clutch regulating valve (6) is located in the valve housing of the electrohydraulic control module. The valve is responsible for the hydraulic control of the torque converter lockup clutch and distribution of the lubricating oil. See Fig 1.
