Seal-Torque Converter Hub: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

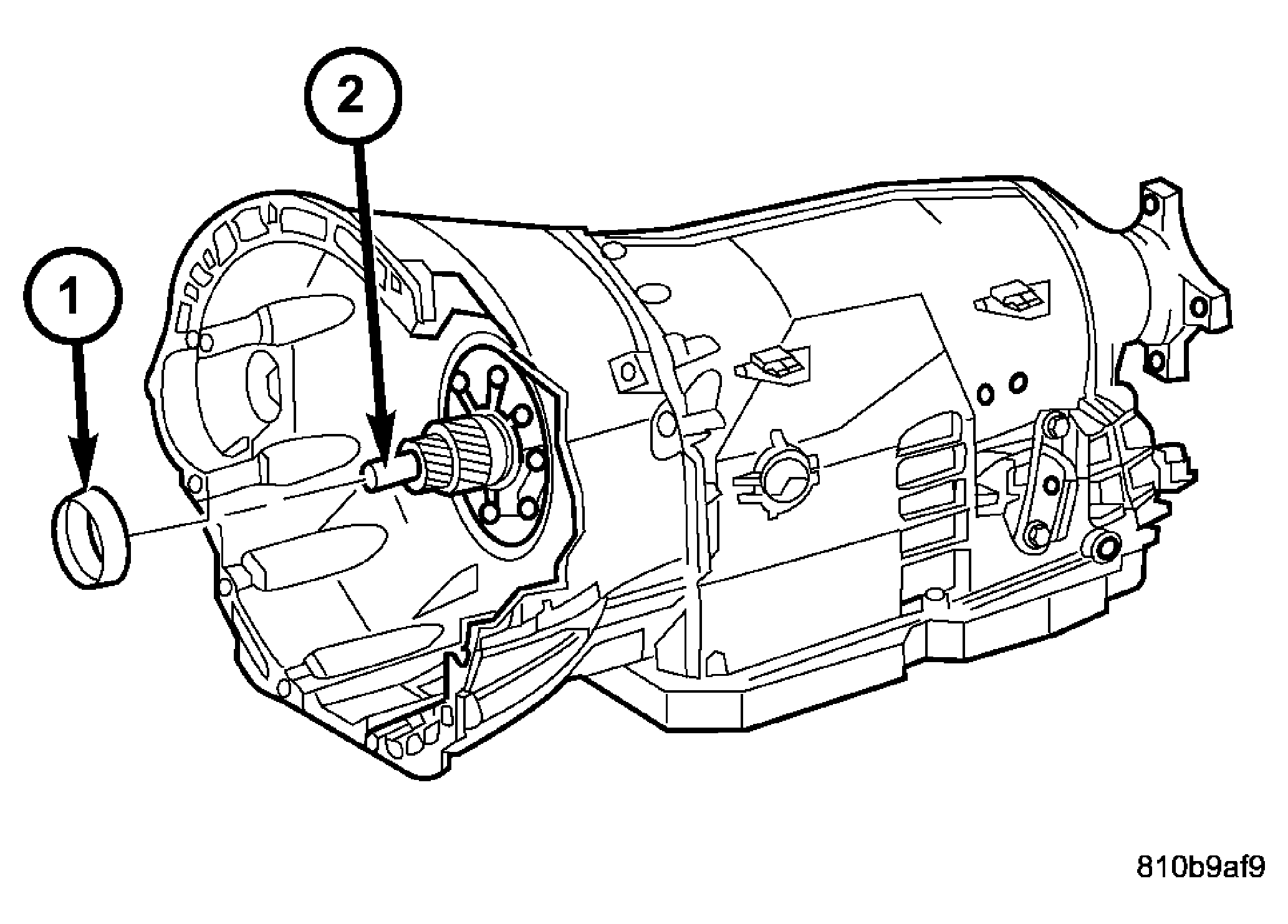

Fig 1: Position Torque Converter Hub Seal

Courtesy of DAIMLERCHRYSLER CORP.

1 - TORQUE CONVERTER HUB SEAL

2 - INPUT SHAFT

Position the torque converter hub seal (1) over the input shaft and against the transmission oil pump. See Fig 1.

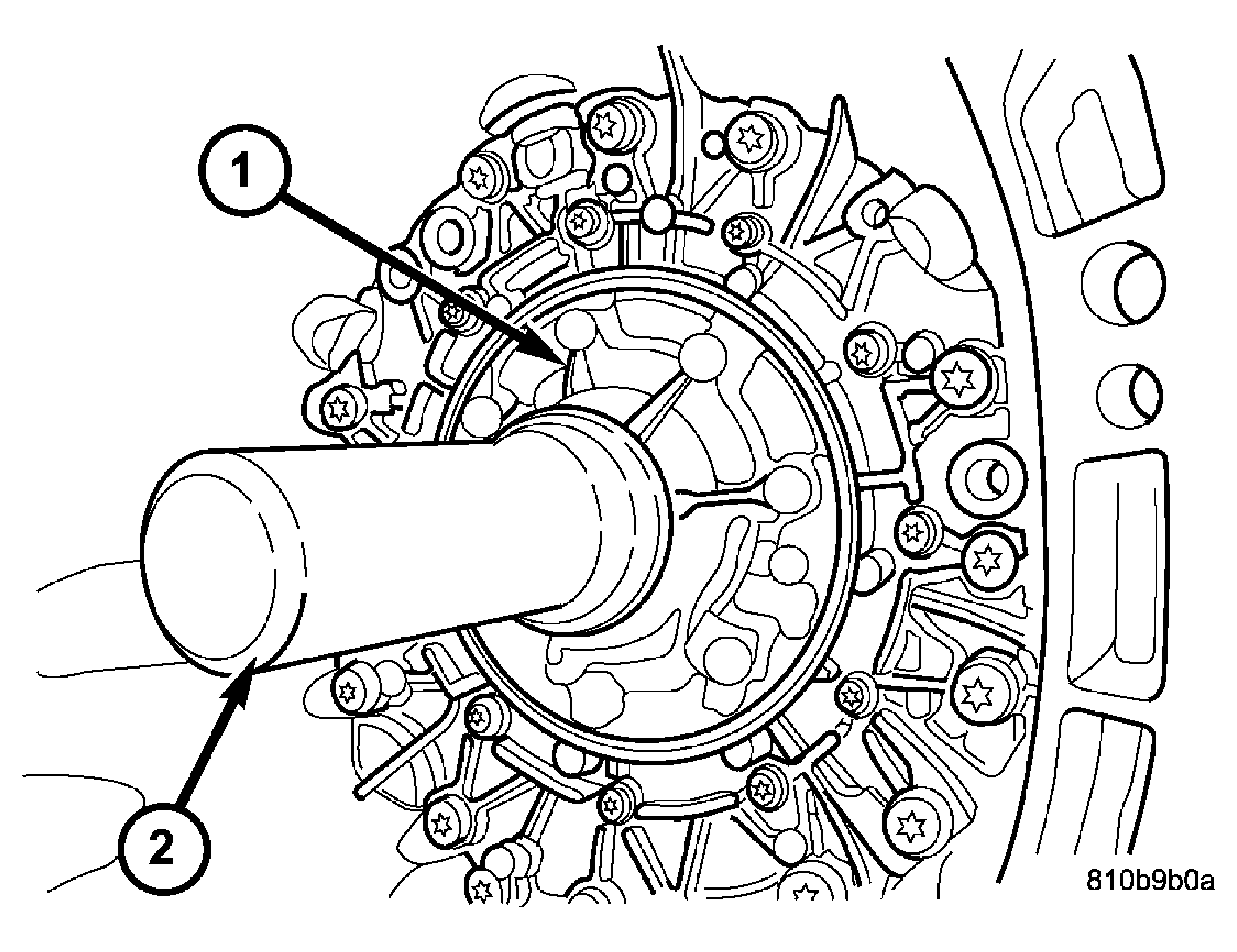

Fig 2: Install Torque Converter Hub Seal
Courtesy of DAIMLERCHRYSLER CORP.

1 - OIL PUMP

2 - SEAL INSTALLER 8902A
Using Seal Installer 8902A (2), install a new torque converter hub seal. See Fig 2.
Install the torque converter (Refer to INSTALLATION ).
