5.7L Engine

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removal & Installation of EGR Valve - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

The electronic EGR valve and solenoid assembly (3) is attached to the front of the right cylinder head (1). An exhaust gas routing tube connects the EGR valve to the intake manifold.

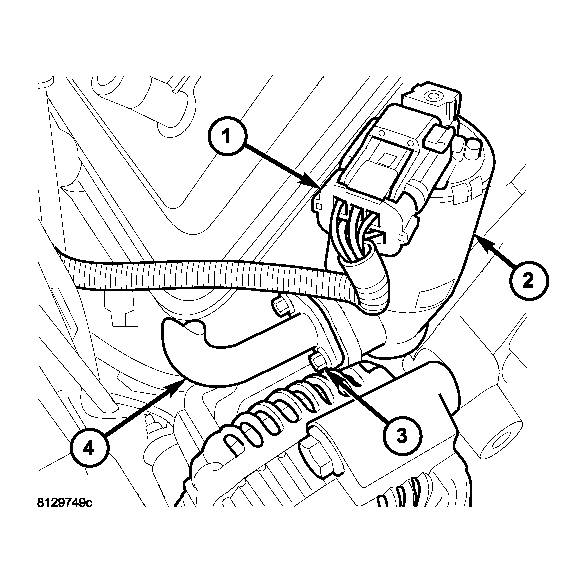

Fig 2: Identifying EGR Valve - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect electrical connector (1) from EGR solenoid (2).
Remove two bolts (3) connecting EGR tube (4) to valve assembly.
Remove gasket located between EGR tube flange and EGR valve assembly.

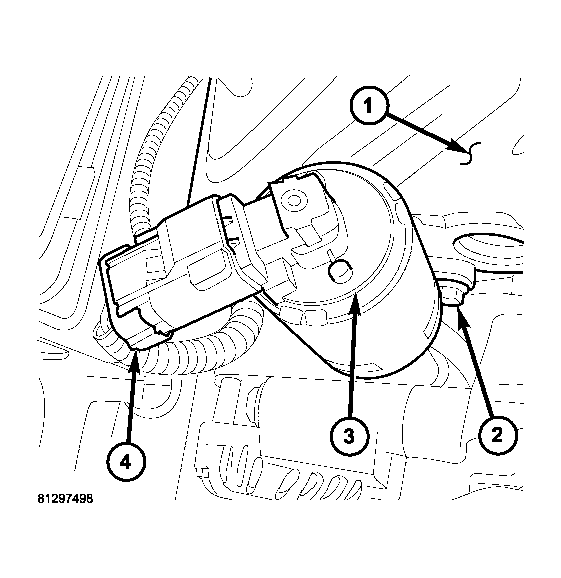

Fig 3: Removal & Installation of EGR Valve - 5.7L
Courtesy of DAIMLERCHRYSLER CORP.
Remove two mounting bolts (2).
Separate valve assembly (3) from cylinder head (1).
Remove and discard metal gasket located between cylinder head and valve assembly.
