Evaporative Emissions: Solenoid-EVAP/Purge: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

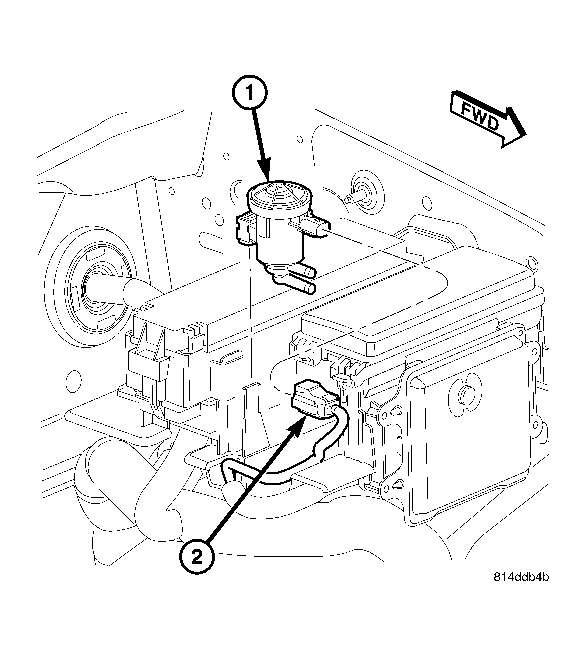

The duty cycle EVAP canister purge solenoid (1) is located in the engine compartment attached to a bracket.
- Disconnect electrical wiring connector (2) at solenoid.
- Disconnect vacuum lines at solenoid.
- Remove solenoid from mounting bracket by lifting straight up.
