Evaporative Emissions: Canister-Vapor: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying NVLD / EVAP Canister Location

Courtesy of DAIMLERCHRYSLER CORP.

The NVLD pump (2) is attached to the EVAP canister (3). This assembly is located in the left-rear quarter-panel behind the left-rear tire.

Raise and support vehicle.
Remove left-rear tire.
To access EVAP canister or NVLD pump, remove plastic splash shield at rear of left-rear tire.
Disconnect electrical connector (4) at pump.
Carefully remove vapor/vacuum hoses (1) and (6) at pump.

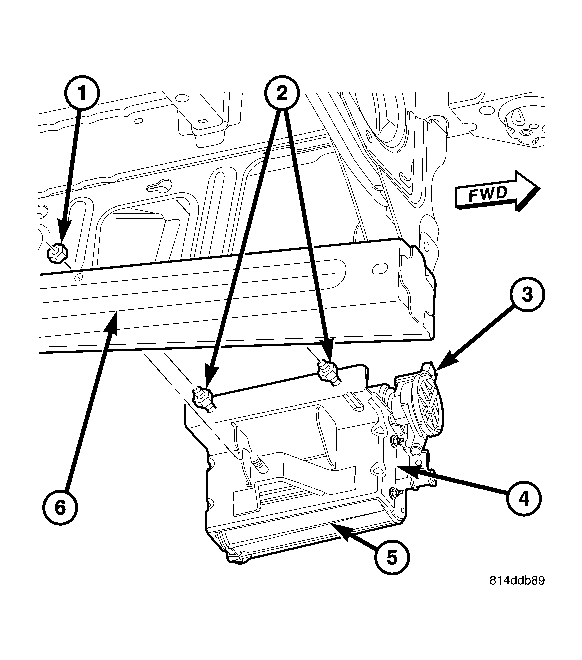

Fig 2: Removal Of EVAP Canister
Courtesy of DAIMLERCHRYSLER CORP.
Remove three canister bracket-to-body nuts (1) and (2).
Separate canister from mounting bracket by removing two canister-to-bracket nuts at front of canister (4). The opposite end of canister is equipped with two alignment pins. Remove canister from support bracket by pulling these two pins from the two rubber grommets
To Separate NVLD Pump from EVAP canister:

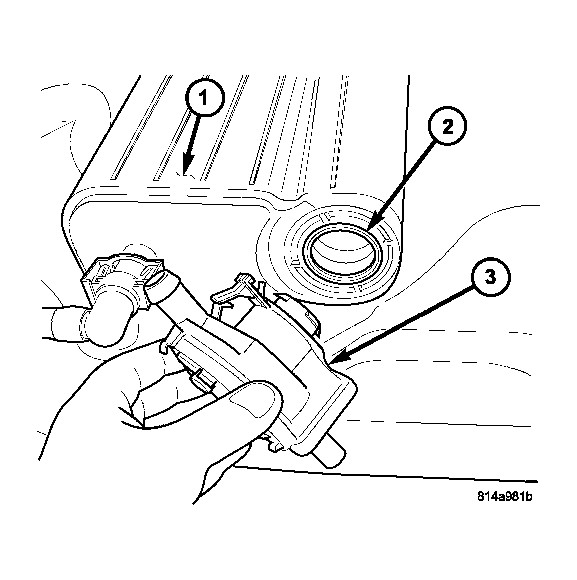

Fig 3: Identifying NVLD Pump
Courtesy of DAIMLERCHRYSLER CORP.
Pry outward on tab (3) and rotate pump clock-wise about 70 degrees for removal.

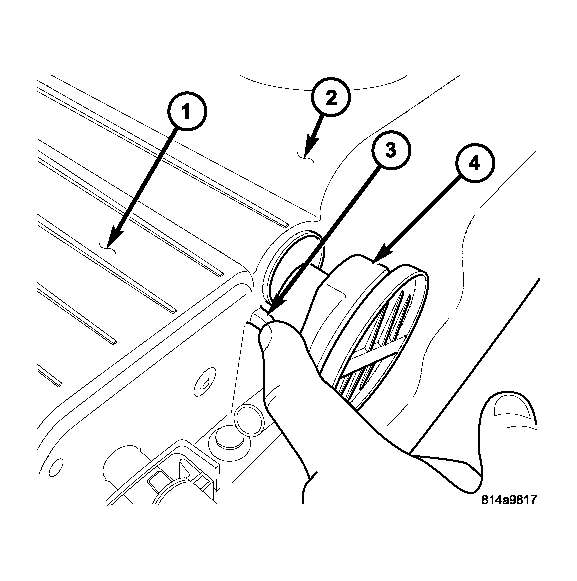

Fig 4: Identifying NVLD Pump O-Ring
Courtesy of DAIMLERCHRYSLER CORP.
Remove NVLD pump o-ring (2) from EVAP canister (1).
