Line-A/C Discharge: Description
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

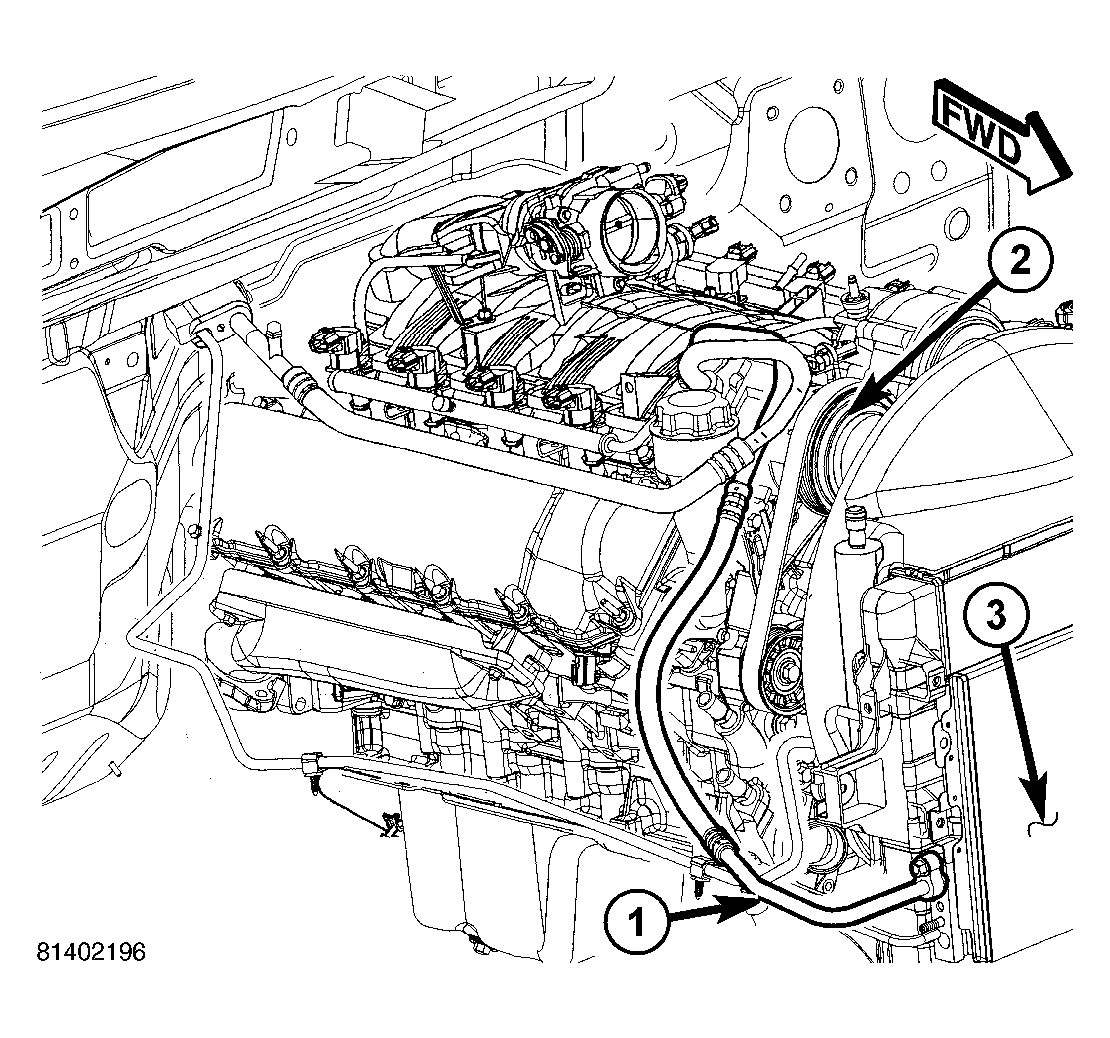

4.7L engine shown in illustration. A/C discharge line for other engines are similar.
The A/C discharge line (1) is the refrigerant line that carries refrigerant from the A/C compressor (2) to the A/C condenser (3). The A/C discharge line on models equipped with the 5.7L engine include a fitting for the A/C pressure transducer. For more information refer to DESCRIPTION .
CAUTION:
Use only seals specified for the vehicle. Failure to use the correct seals will cause the refrigerant system connections to leak.
The A/C discharge line has no serviceable parts except for the dual plane seals. The seals used on the connections are made from a special type of rubber not affected by R-134a refrigerant. The seals must be replaced whenever the A/C discharge line is removed and installed.
If the A/C discharge line is found to be leaking or is damaged, it must be replaced.
