Section 562 (HVAC Systems (Service Information)): Plumbing: Condenser-A/C: Description
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

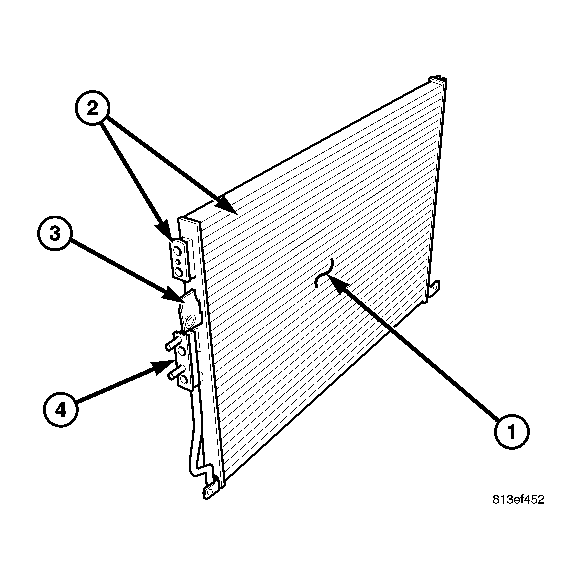

The A/C condenser (1) is located in the front of the engine compartment behind the grille. The A/C condenser is a heat exchanger that allows the high-pressure refrigerant gas being discharged by the A/C compressor to give up its heat to the air passing over the condenser fins, which causes the refrigerant to cool and change to a liquid state.
The A/C condenser is equipped with an integral automatic transmission cooler and tapping block (2), mounting provisions for the power steering cooler (3) and a tapping block for the A/C discharge line and the receiver/drier (4).
