Reading Diagnostic Trouble Codes - MTC System
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

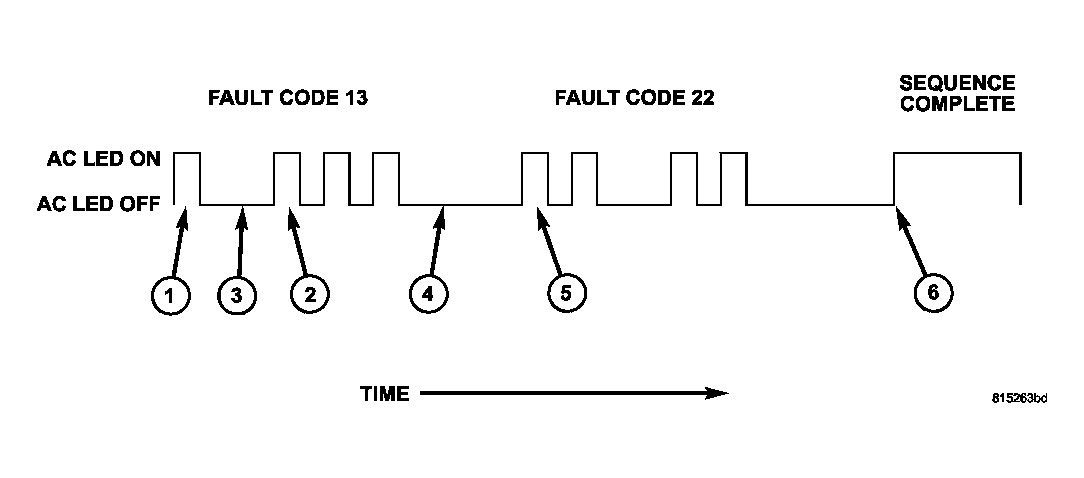

All active and stored DTCs for the MTC system have an assigned code number. The A/C status indicator flashes in a series of pulses to display the code numbers. Each pulse has an indicator on time of 1.5 seconds. The tens unit value (1) is flashed first followed by the ones unit value (2). A 2.0 second indicator off-time (3) separates the unit values. When displaying multiple DTCs, the A/C status indicator will go off for five seconds (4) before displaying the next DTC (5). To indicate that the A/C-heater control has completed displaying all DTCs, the A/C status indicator will illuminate for two seconds (6) and then go off for two seconds before beginning to flash the DTCs over again.
