Section 562 (HVAC Systems (Service Information)): Distribution: Motor-Blower: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

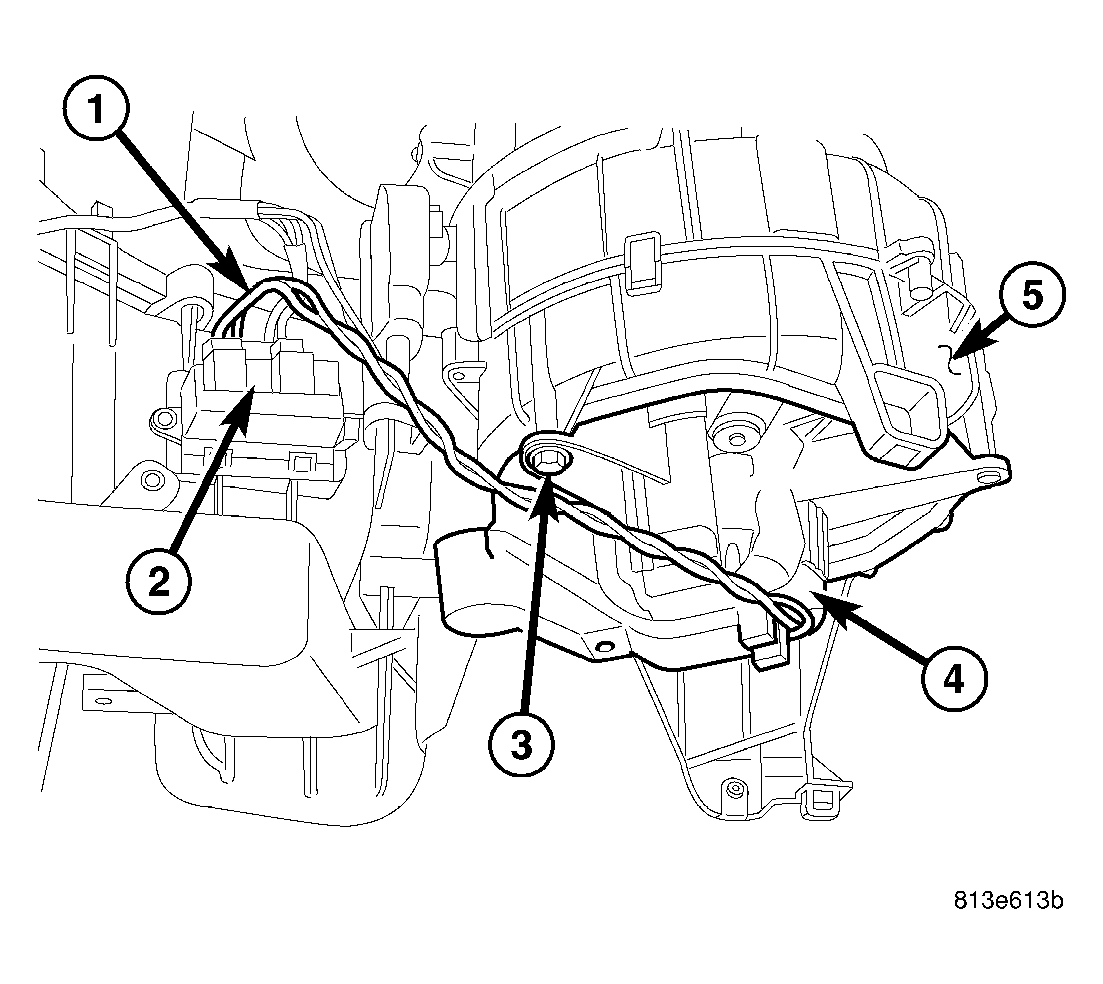

Fig 1: Blower Motor-R and I
GC0028327Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the blower motor (4) into the HVAC housing (5).
  2. Install the three screws (3) that secure the blower motor to the HVAC housing. Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Connect the wire harness connector (1) to the blower motor power module or resistor (2), depending on how equipped.
  4. Install the glove box into the instrument panel (Refer to BODY/INSTRUMENT PANEL/GLOVE BOX - INSTALLATION) .
  5. Install the instrument panel silencer onto the passenger side of the instrument panel.
  6. Reconnect the negative battery cable.
