Air Inlet Housing

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The air inlet housing must be removed from HVAC housing and disassembled for service of the recirculation-air door.

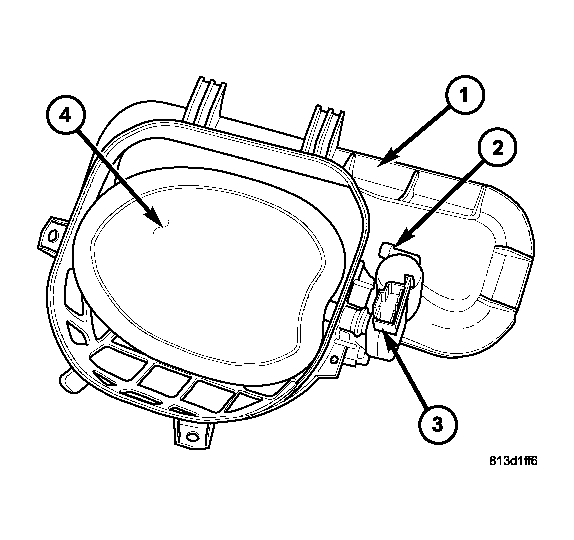

Fig 1: Air Inlet Housing D and A
GC0028348Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the air inlet housing (1) from the HVAC housing and place it on a workbench (Refer to HEATING & AIR CONDITIONING/DISTRIBUTION/HOUSING-HVAC - AIR INLET HOUSING - REMOVAL)
  2. Remove the two screws (2) that secure the recirculation door actuator (3) to the left side of the air inlet housing and remove the actuator.
    NOTE: If the foam seal on the recirculation-air door or the air inlet housing is deformed or damaged, it must be replaced.
  3. Carefully remove the recirculation-air door (4) from the air inlet housing.
