Front Floor Ducts

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

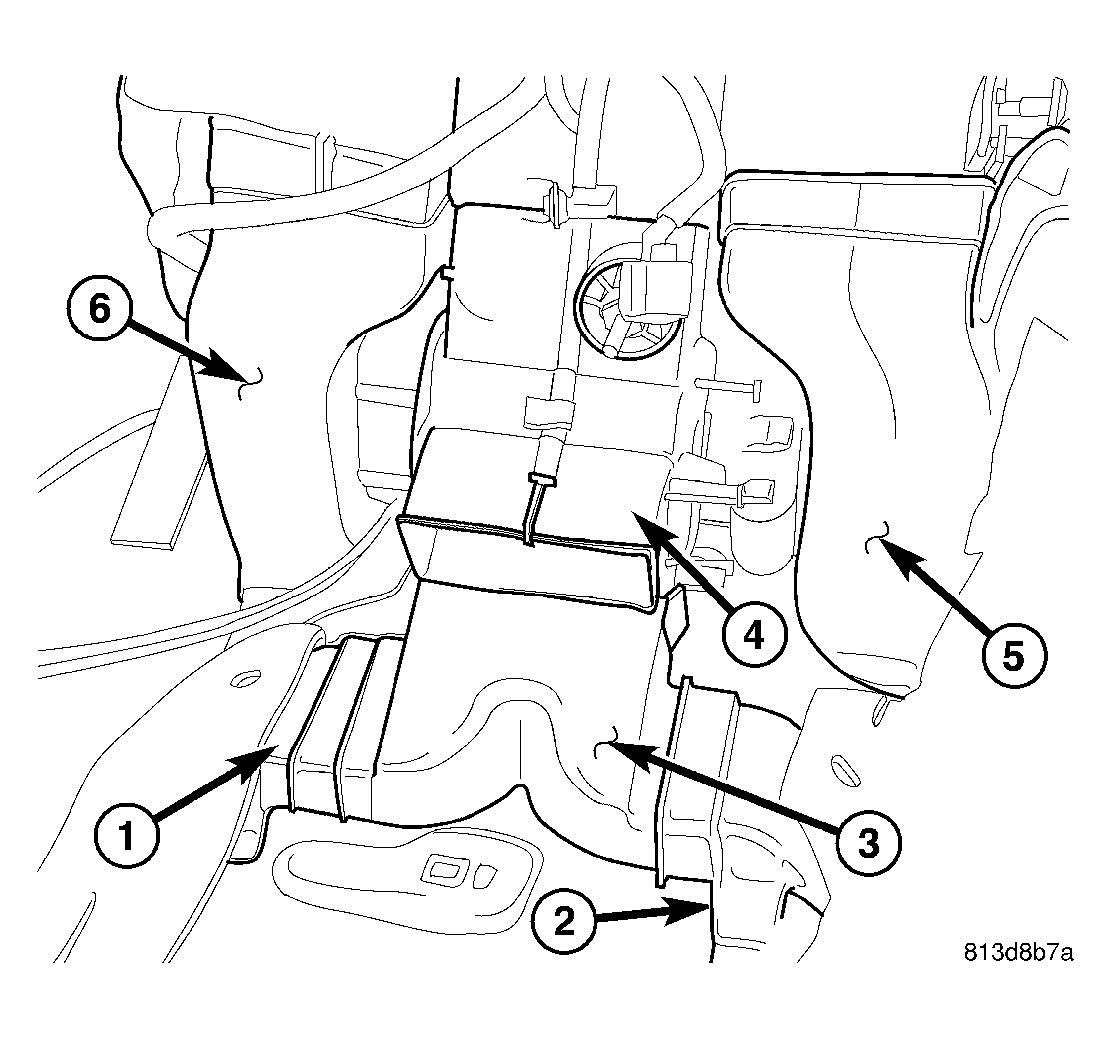

Fig 1: Floor Distribution Duct
GC0028323Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Shown with the instrument panel, gear selector and console duct removed for clarity.
  1. Remove the instrument panel from the passenger compartment (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL) .
  2. Disconnect the right front floor duct (5) and the left front floor duct (6) from the rear of the air distribution housing (4) and remove the front floor ducts from the vehicle.
