Outboard Ducts

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

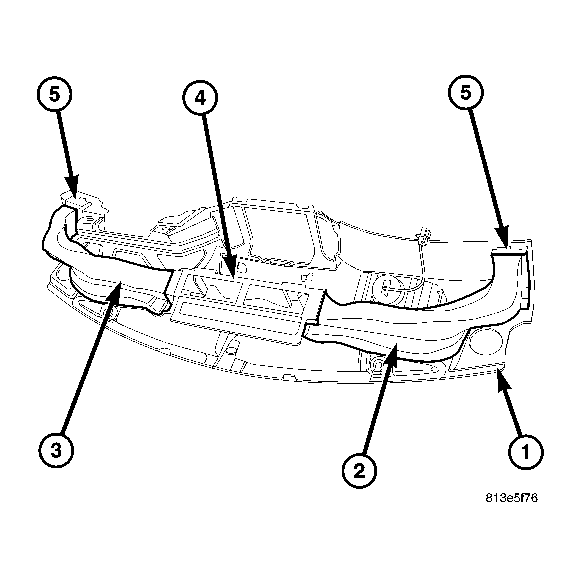

Fig 1: Outboard IP Ducts-R and I
GC0028324Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the passenger side instrument panel duct and demister duct assembly (2) and the driver side instrument panel duct and demister duct assembly (3) into the instrument panel top cover (1).
  2. Connect the instrument panel ducts to the air outlets (5) and the main distribution duct (4). Make sure that the ducts are correctly installed over the instrument panel and demister outlet seals.
  3. Install the screws that secure the instrument panel ducts the instrument panel top cover. Tighten the screws to 2 N.m (17 in. lbs.).
  4. Install the instrument panel top cover onto the instrument panel.
  5. Install the instrument panel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION) .
