Center Ducts

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

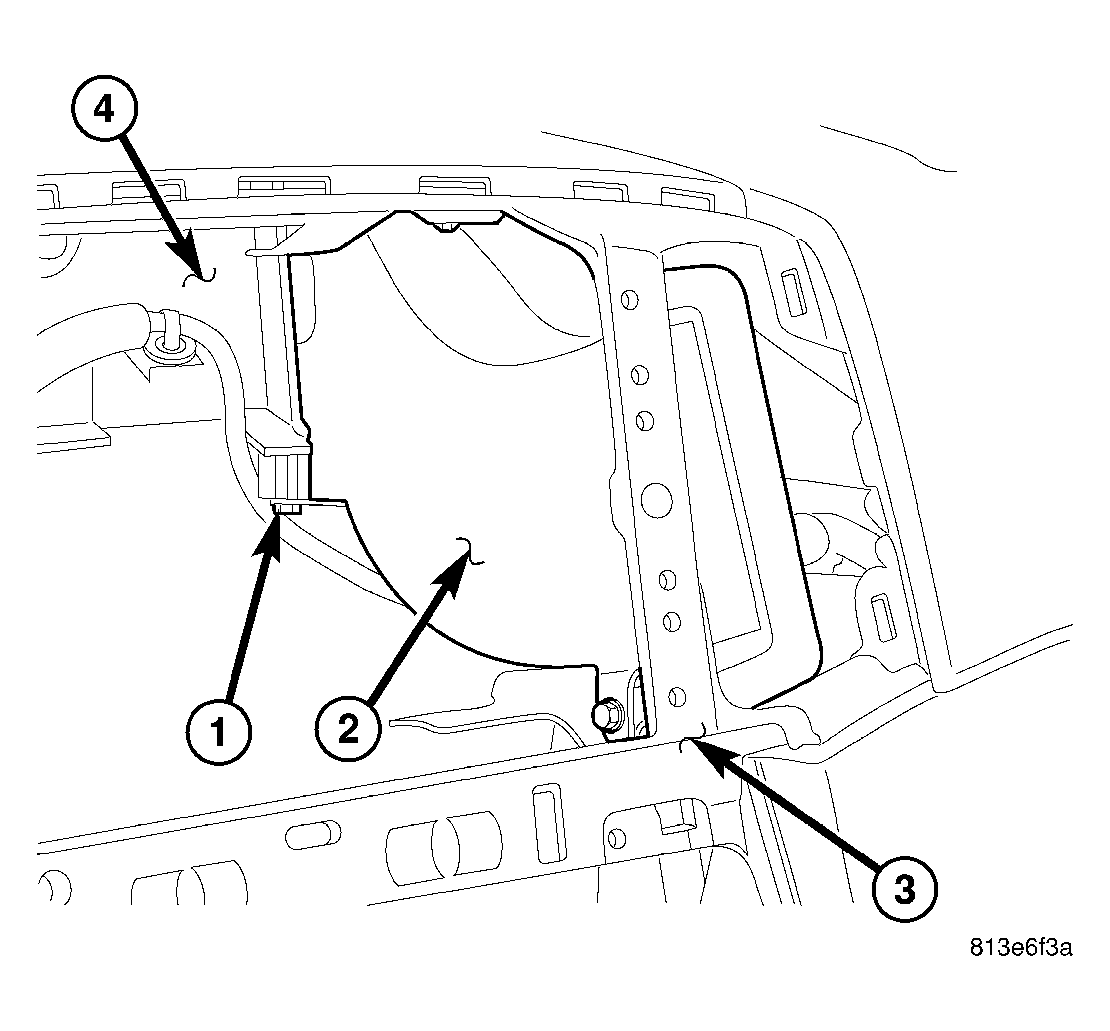

Fig 1: Center IP Ducts-R and I
GC0028325Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the center instrument panel duct(s) (2) into the instrument panel (3) through the opening for the radio.
  2. Connect the center instrument panel duct(s) to the main distribution duct (4).
  3. Install the screws (1) that secure the center instrument panel duct(s) to the instrument panel. Tighten the screws to 2 N.m (17 in. lbs.).
  4. Install the radio into the instrument panel (Refer to ELECTRICAL/AUDIO/RADIO - INSTALLATION) .
