Duct-Floor Console: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

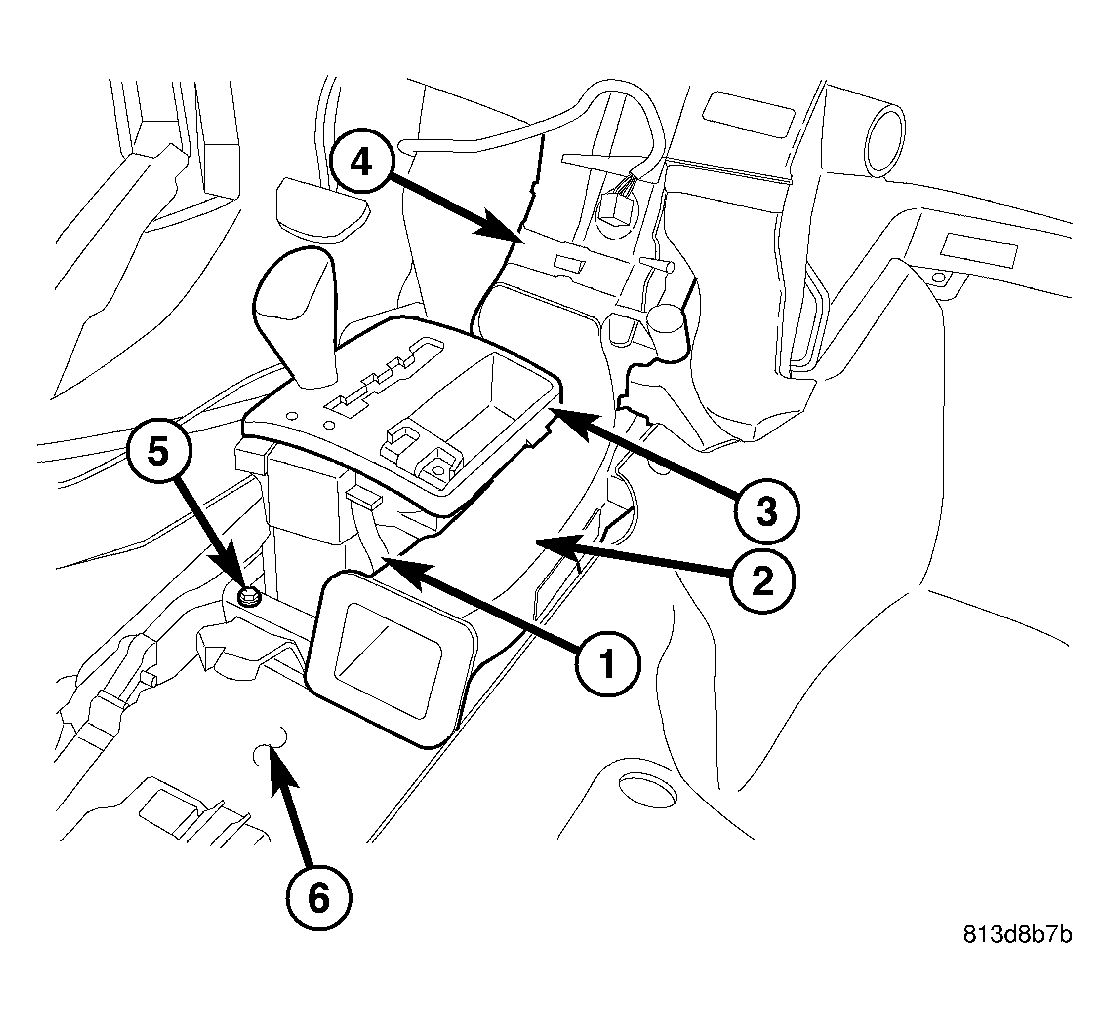

Fig 1: Front Console Duct
GC0028322Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Shown with instrument panel removed for clarity.
  1. Position the floor console duct (2) into the vehicle.
  2. Connect the front console duct to the air distribution housing (4) and engage the push-pin retainer (1) to the gear selector (3).
  3. Install the floor console.
