Transducer-A/C Pressure: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

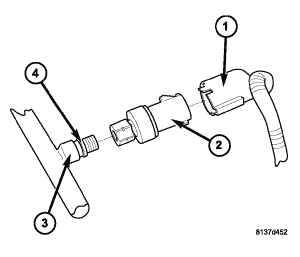

Fig 1: Transducer-A/C Pressure R and I
GC0007399Courtesy of DAIMLERCHRYSLER CORP.
NOTE: It is not necessary to discharge the refrigerant system to replace the A/C pressure transducer.
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the wire harness connector (1) from the A/C pressure transducer (2) located on the A/C discharge line (3).
  3. Remove the A/C pressure transducer from the fitting on the A/C discharge line and remove and discard the O-ring seal.
