Sensor-Evaporator Temperature: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.

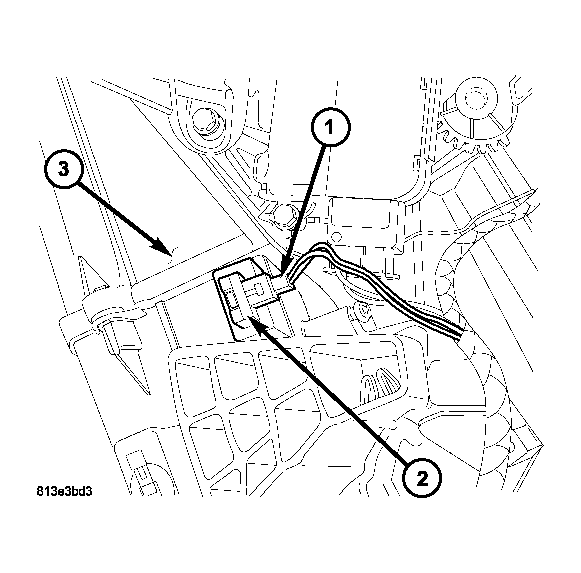

Fig 1: Sensor-EVAP Temp-R and I
GC0028318Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the instrument panel silencer from the driver side of the instrument panel. Refer to INSTRUMENT CLUSTER - SERVICE INFORMATION .
  3. Disconnect the HVAC wire harness connector (1) from the evaporator temperature sensor (2) located on the side of the HVAC housing (3).
  4. Remove the evaporator temperature sensor from the HVAC housing.
