Relay-A/C Clutch: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

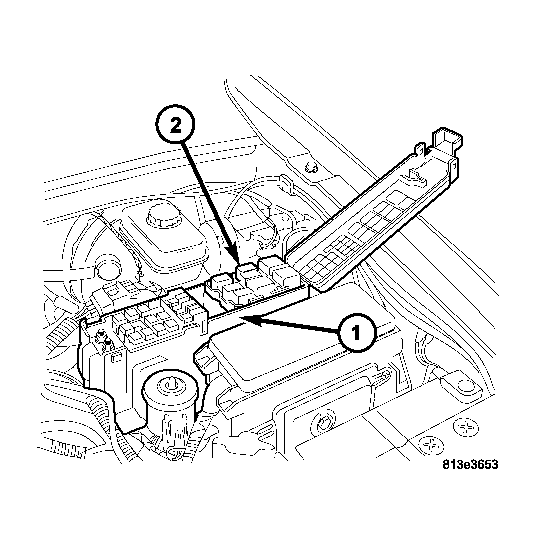

Fig 1: A/C Clutch Relay
GC0028314Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Open the cover of the power distribution center (PDC) (1) located in the engine compartment.
    NOTE: Refer to the fuse and relay layout map on the inside of the PDC cover for A/C clutch relay location.
  3. Remove the A/C clutch relay (2) from the PDC.
