Actuator-RECIRCULATION Door: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.

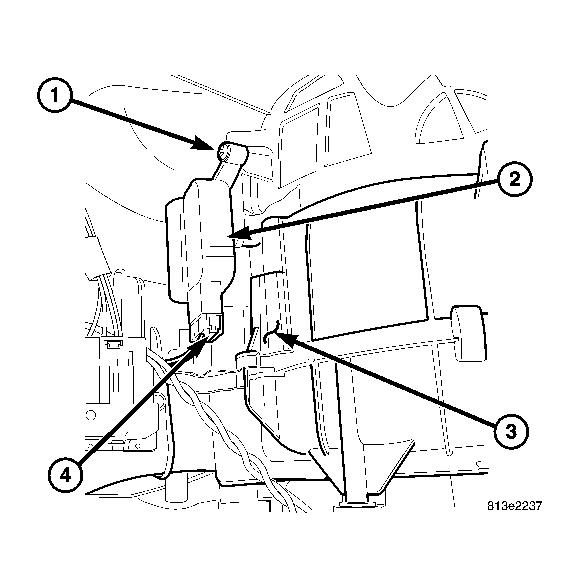

Fig 1: Actuator-Recirculation-R and I
GC0028309Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the glove box from the instrument panel (Refer to BODY/INSTRUMENT PANEL/GLOVE BOX - REMOVAL) .
  3. Remove the two screws (1) that secure the recirculation door actuator (2) to the left side of the HVAC air inlet housing (3).
  4. Remove the recirculation door actuator from the air inlet housing and disconnect the HVAC wire harness connector (4) from the actuator.
  5. Remove the recirculation door actuator from the vehicle.
