Dual Zone Passenger Side

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

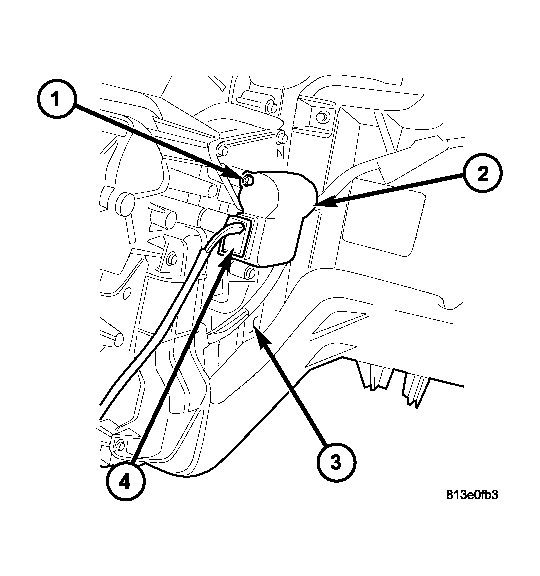

Fig 1: Actuator-Blend Door-Dual Passenger R And I
GC0028302Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the glove box from the instrument panel (Refer to BODY/INSTRUMENT PANEL/GLOVE BOX - REMOVAL) .
  3. Remove the three screws (1) that secure the blend door actuator (2) to the passenger side of the HVAC air distribution housing (3).
  4. Remove the blend door actuator from the air distribution housing and disconnect the HVAC wire harness connector (4) from the actuator.
  5. Remove the blend door actuator from the vehicle.
