Section 561 (Charging System (Service Information)): Generator: Installation: 5.7L

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

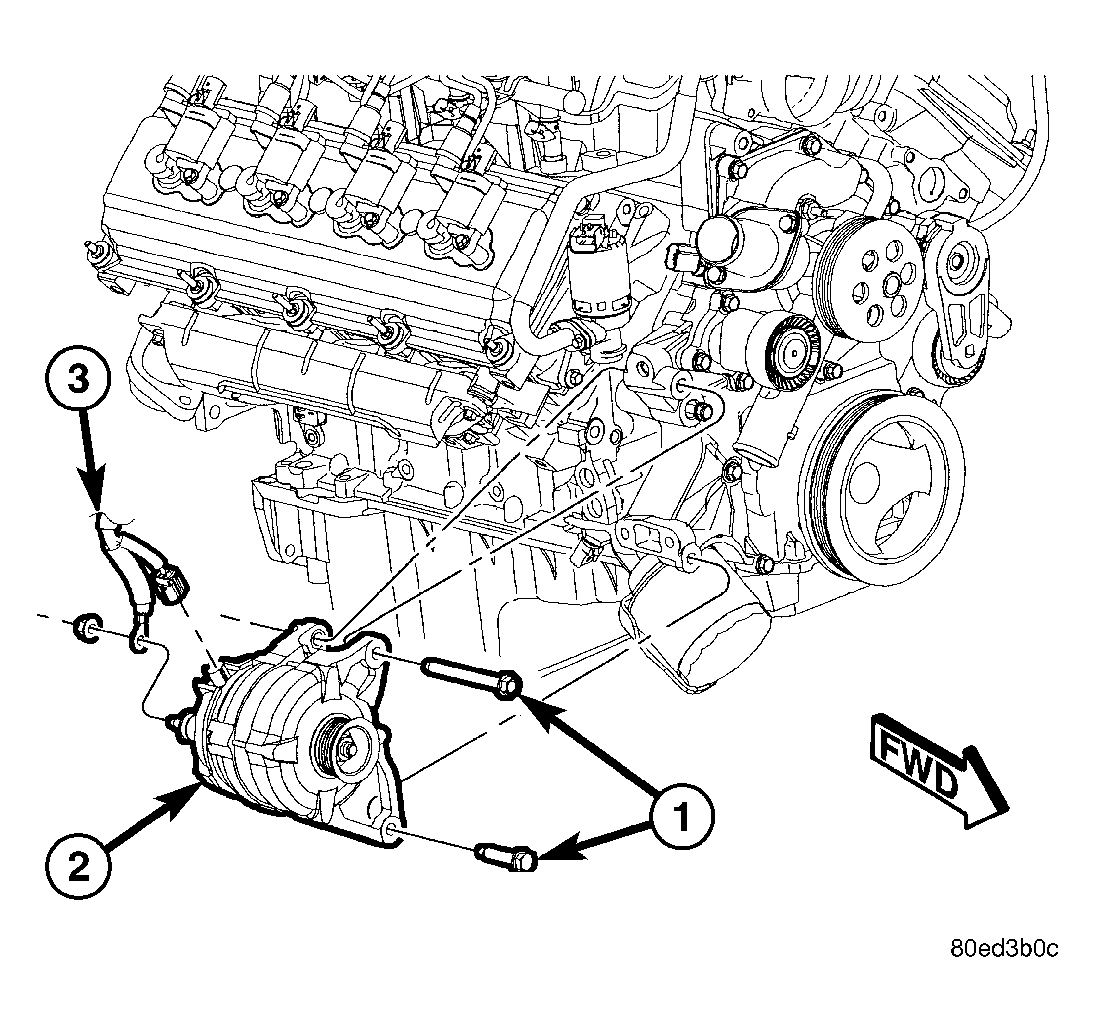

Fig 1: Removing/Installing Generator - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

Position generator (2) to engine and install 2 mounting bolts (1).
Tighten bolts. Refer to TORQUE - CHARGING SYSTEM .
Snap field wire connector (3) into rear of generator.
Install B+ terminal eyelet (3) to generator output stud. Tighten mounting nut. Refer to TORQUE - CHARGING SYSTEM .
CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.

CAUTION: When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment.
Install generator drive belt. Refer to COOLING for procedure.
Install negative battery cable to battery.
