5.7L Engine
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

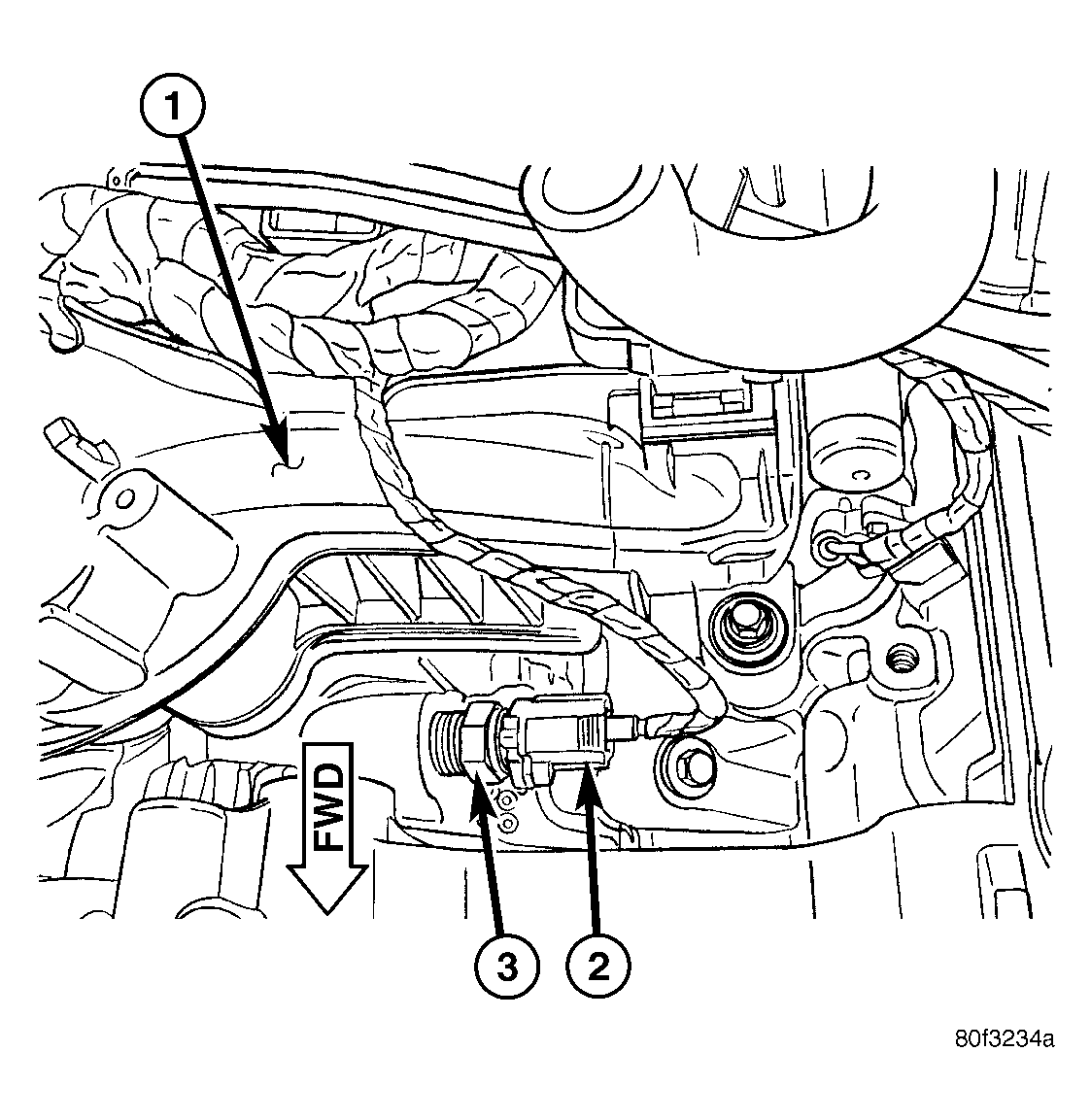

| 1 - FRONT OF INTAKE MANIFOLD |
| 2 - ELECTRICAL CONNECTOR |
| 3 - ECT SENSOR |
- Apply thread sealant to sensor threads.
- Install sensor into engine.
- Tighten sensor to 11 N.m (8 ft. lbs.) torque.
- Connect electrical connector to sensor.
- Carefully bolt air conditioning compressor onto the front of engine. Refer to HVAC - SERVICE INFORMATION for information.
- Install accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
- Replace any lost engine coolant. (Refer to COOLING - STANDARD PROCEDURE) .
